RFX-53T-30.0M40IL16

RFX-53T-30.0M40IL16

Part Number	RFX-53T-30.0M40IL16
Manufacturer	RFX Group
Other Part Numbers	4203-RFX-53T-30.0M40IL16TR-ND 4203-RFX-53T-30.0M40IL16CT-ND 4203-RFX-53T-30.0M40IL16DKR-ND 4203-RFX-53T-30.0M40IL16DKR 4203-RFX-53T-30.0M40IL16TR 4203-RFX-53T-30.0M40IL16CT

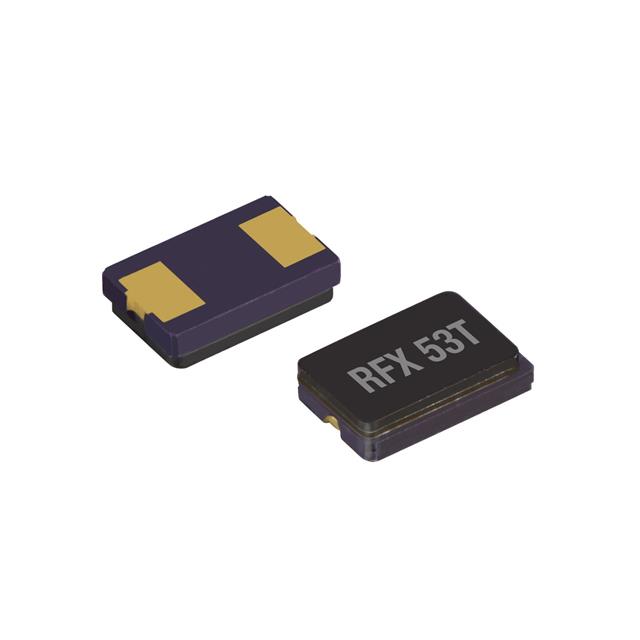

Description	CRYSTAL 30MHZ 5032 30PPM
Detailed Description	30 MHz ±10ppm Crystal 16pF 50 Ohms 2-SMD, No Lead
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		RFX Group
Series		RFX-53T
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Load Capacitance		16pF
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±30ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.039" (1.00mm)
ESR (Equivalent Series Resistance)		50 Ohms
Frequency		30 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RFX-53T-30.0M40IL16

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
