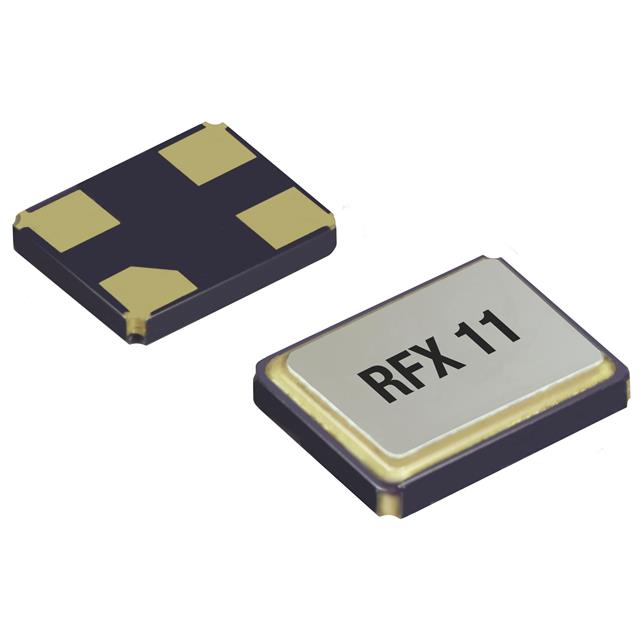

RFX-11-26.0M30IL16

RFX-11-26.0M30IL16

Part Number	RFX-11-26.0M30IL16
Manufacturer	RFX Group
Other Part Numbers	4203-RFX-11-26.0M30IL16TR-ND 4203-RFX-11-26.0M30IL16CT-ND 4203-RFX-11-26.0M30IL16DKR-ND 4203-RFX-11-26.0M30IL16DKR 4203-RFX-11-26.0M30IL16TR 4203-RFX-11-26.0M30IL16CT
Description	CRYSTAL 26MHZ 1612 20PPM
Detailed Description	26 MHz ±10ppm Crystal 16pF 150 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		RFX Group
Series		RFX-11
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		16pF
Size / Dimension		0.063" L x 0.047" W (1.60mm x 1.20mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±20ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.014" (0.35mm)
ESR (Equivalent Series Resistance)		150 Ohms
Frequency		26 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RFX-11-26.0M30IL16

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
