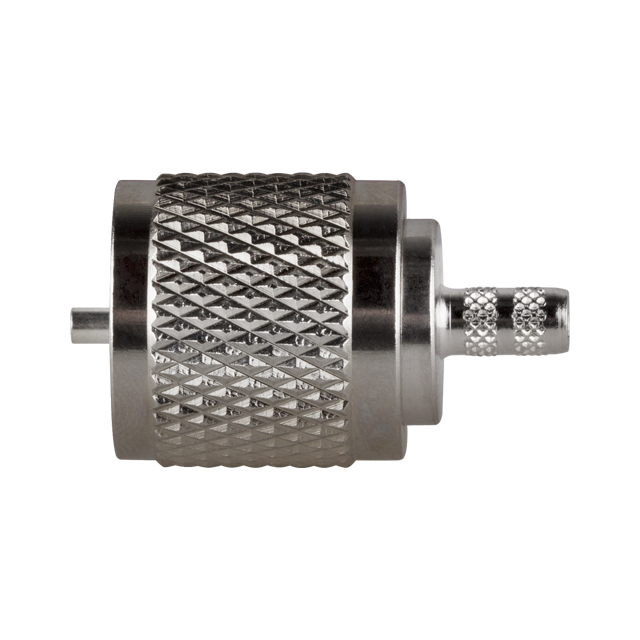

RFU-505 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	RFU-505
Manufacturer	RF Industries
Other Part Numbers	2737-RFU-505-ND 2737-RFU-505
Description	UHF MALE CRIMP; 50 OHMS
Detailed Description	UHF Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Crimp
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		RF Industries
Series
Packaging		Bag
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Crimp
Impedance		Non-Constant
Mounting Type		Free Hanging (In-Line)
Fastening Type		Threaded
Connector Style		UHF
Dielectric Material		Diallyl Phthalate (DAP)
Body Material		Brass
Housing Color		Silver
Shield Termination		Crimp
Center Contact Material		Brass
Body Finish		Nickel
Center Contact Plating		Silver
Frequency - Max		300 MHz
Number of Ports		1
Voltage Rating		500 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
