RFD-1688-4 _ Coaxial Connector (RF) Adapters_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	RFD-1688-4
Manufacturer	RF Industries
Other Part Numbers	2737-RFD-1688-4-ND 2737-RFD-1688-4

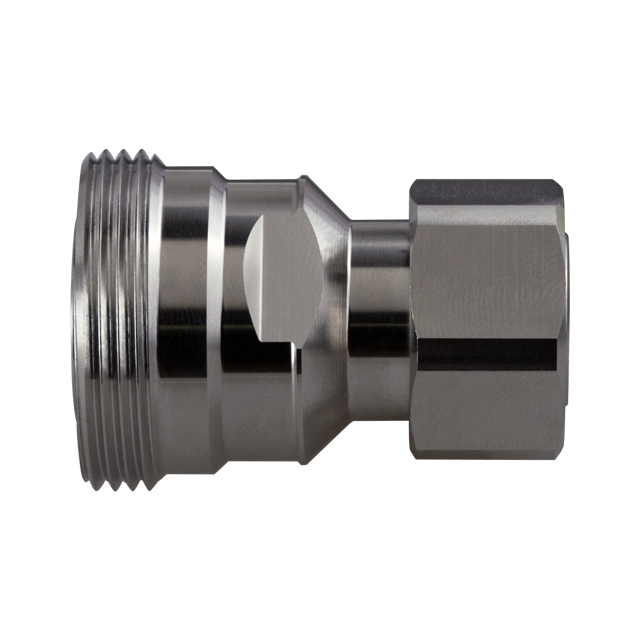

Description	7/16 DIN FEMALE-4.3/10 MALE
Detailed Description	Adapter Coaxial Connector 4.3/10 Plug, Male Pin To 7/16 Jack, Female Socket 50 Ohms
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		RF Industries
Series
Packaging		Bag
Part Status		Active
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		4.3/10 Plug, Male Pin
Convert To (Adapter End)		7/16 Jack, Female Socket
Operating Temperature		-40°C ~ 155°C
Fastening Type		Threaded, Threaded
Dielectric Material		Polytetrafluoroethylene (PTFE)
Adapter Series		7/16 DIN to 4.3/10
Adapter Type		Plug to Jack
Center Gender		Female to Male
Conversion Type		Between Series
Body Material		Brass
Center Contact Material		Beryllium Copper
Body Finish		White Bronze
Center Contact Plating		Silver
Frequency - Max		6 GHz

RESOURCE TYPE		LINK
Datasheets		RFD-1688-4

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
