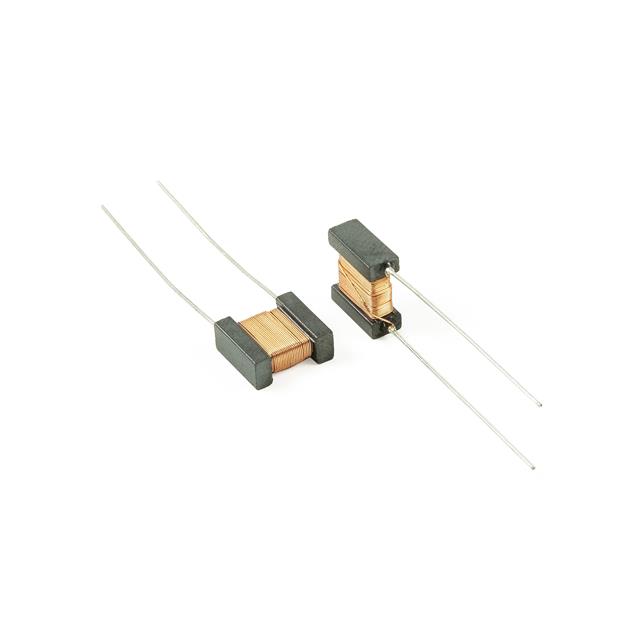

RFC20-152K-RC

Part Number
RFC20-152K-RC
Manufacturer Allied Components International
Other Part Numbers
3475-RFC20-152K-RC-ND
3475-RFC20-152K-RC
Description 1500UH 10% RADIAL FLAT COIL
Detailed Description 1.5 mH Unshielded Wirewound Inductor 190 mA 14.26Ohm Max Radial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allied Components International
Series
Packaging
Box
Part Status Active
Tolerance ±10%
Package / Case Radial
Size / Dimension 0.400" L x 0.125" W (10.16mm x 3.18mm)
Mounting Type Through Hole
Shielding Unshielded
Type Wirewound
Operating Temperature -20°C ~ 100°C
DC Resistance (DCR) 14.26Ohm Max
Q @ Freq 62 @ 250kHz
Inductance Frequency - Test 250 kHz
Supplier Device Package Radial
Height - Seated (Max) 0.400" (10.16mm)
Inductance 1.5 mH
Current Rating (Amps) 190 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets RFC20-152K-RC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
RoHS Status RoHS Compliant
