RFC20-101K-RC

RFC20-101K-RC

Part Number	RFC20-101K-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-RFC20-101K-RC-ND 3475-RFC20-101K-RC

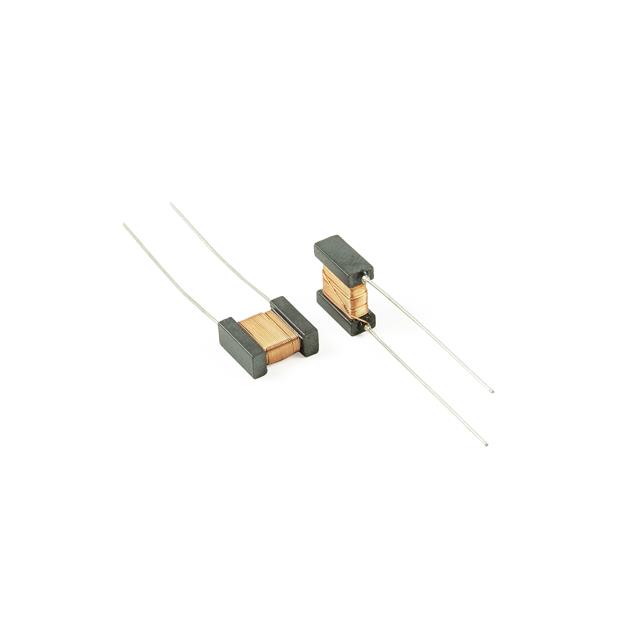

Description	100uH +/-10% Radial Flat Coil
Detailed Description	100 µH Unshielded Wirewound Inductor 700 mA 1.16Ohm Max Radial
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		RFC20
Packaging		Case
Part Status		Active
Tolerance		±10%
Package / Case		Radial
Size / Dimension		0.400" L x 0.150" W (10.16mm x 3.81mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-20°C ~ 100°C
DC Resistance (DCR)		1.16Ohm Max
Q @ Freq		80 @ 2.5MHz
Inductance Frequency - Test		2.5 MHz
Supplier Device Package		Radial
Height - Seated (Max)		0.400" (10.16mm)
Inductance		100 µH
Current Rating (Amps)		700 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RFC20-101K-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
