RF316-01RP1-03RP1-0152 _ Coaxial Cables (RF)_Cable Assemblies

Part Number	RF316-01RP1-03RP1-0152
Manufacturer	Samtec, Inc.
Other Part Numbers	612-RF316-01RP1-03RP1-0152-ND 612-RF316-01RP1-03RP1-0152
Description	CBL ASSY MMCX-SMA PLG-PLG 5.984"

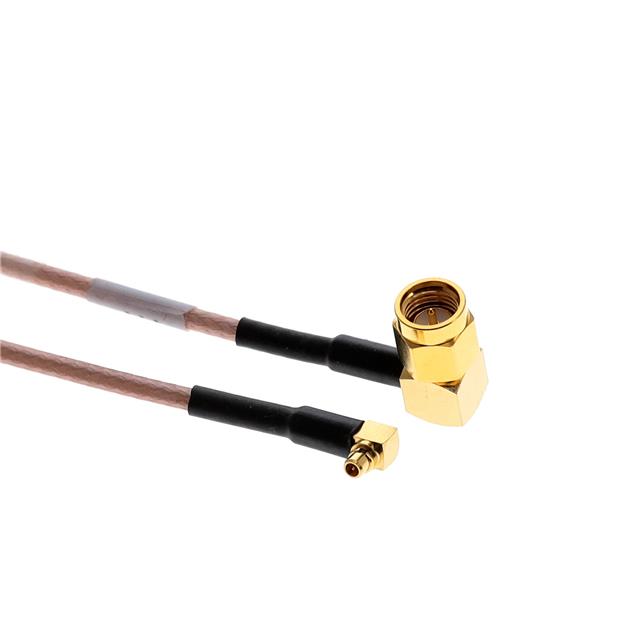

Detailed Description	Cable Assembly Coaxial MMCX to SMA RG-316 5.984" (152.00mm)
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Cable Assemblies Coaxial Cables (RF)
Manufacturer		Samtec, Inc.
Series		RF316
Packaging		Bag
Part Status		Active
Color		Amber
Length		5.984" (152.00mm)
Style		MMCX to SMA
Operating Temperature		-50°C ~ 165°C
Cable Type		RG-316
1st Connector		MMCX Plug, Right Angle
2nd Connector		SMA Plug, Right Angle
Frequency - Max		6 GHz
1st Connector Mounting Type		Free Hanging (In-Line)
2nd Connector Mounting Type		Free Hanging (In-Line)
1st Contact Gender		Male
2nd Contact Gender		Male
Cable Impedance		50 Ohms
Connector Impedance		50 Ohms
Overall Impedance		50 Ohms

RESOURCE TYPE		LINK
Datasheets		RF316-01RP1-03RP1-0152

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.20.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
