RF292A4JAAADGB

Part Number
RF292A4JAAADGB
Manufacturer Bulgin
Other Part Numbers
708-RF292A4JAAADGB-ND
708-RF292A4JAAADGB

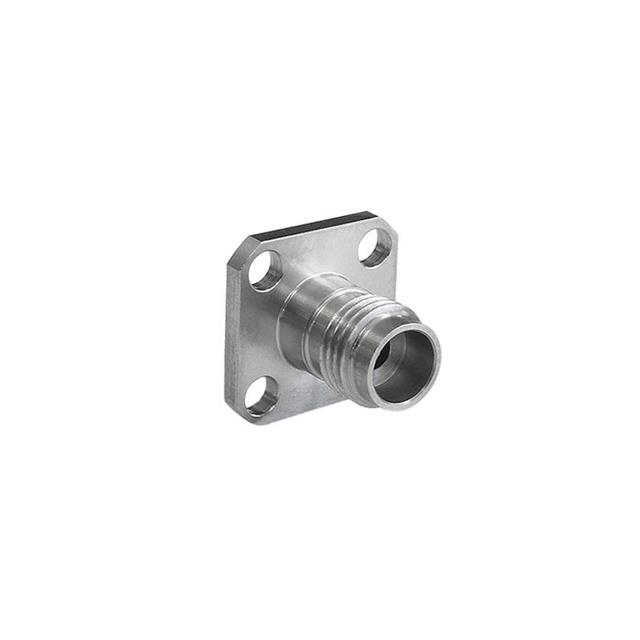

Description CONN 2.92MM J FLNG MNT 4HOLE
Detailed Description 2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Bulgin
Series
Packaging
Bulk
Part Status Active
Features Extended Insulation
Connector Type Jack, Female Socket
Contact Termination Solder
Impedance 50 Ohms
Mounting Type Panel Mount, Through Hole
Operating Temperature -40°C ~ 85°C
Fastening Type Threaded
Connector Style 2.92mm
Dielectric Material Polyetherimide (PEI)
Mounting Feature Flange
Body Material Stainless Steel
Housing Color Silver
Mating Cycles 500
Shield Termination Solder
Center Contact Material Beryllium Copper
Frequency - Max 40 GHz
Number of Ports 1
Voltage Rating 250 V

Documents & Media

RESOURCE TYPE LINK
Datasheets RF292A4JAAADGB
Datasheets Bulgin REACH
Datasheets Bulgin RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4010
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
