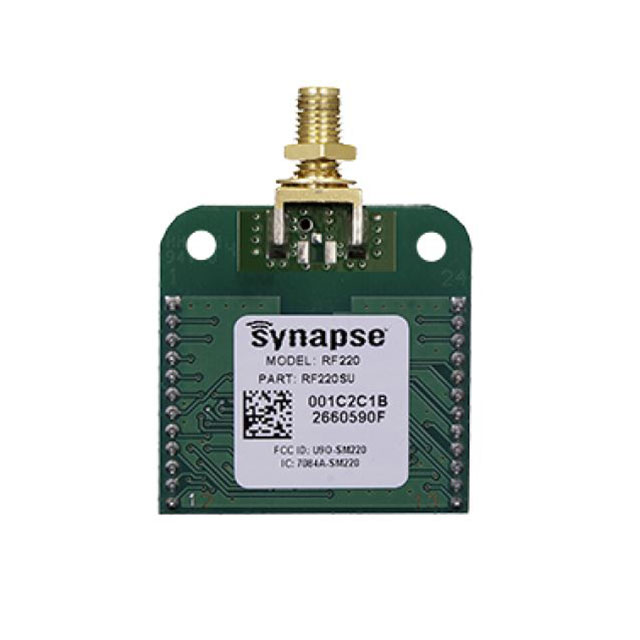

RF220SU _ RF Transceiver Modules and Modems_RF and Wireless

Part Number	RF220SU
Manufacturer	Synapse Wireless
Other Part Numbers	746-1095-ND 746-1095
Description	RF TXRX MODULE 802.15.4 U.FL TH
Detailed Description	802.15.4 Transceiver Module 2.4GHz Antenna Not Included, U.FL Through Hole
Manufacturer Standard Lead Time	16 weeks

Category		RF and Wireless RF Transceiver Modules and Modems
Manufacturer		Synapse Wireless
Series
Packaging		Bulk
Part Status		Active
Package / Case		24-DIP Module
Sensitivity		-103dBm
Mounting Type		Through Hole
Frequency		2.4GHz
Memory Size		128kB Flash, 4kB EEPROM
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2V ~ 3.6V
Power - Output		20dBm
Data Rate		2Mbps
Current - Receiving		22mA
Current - Transmitting		150mA
Antenna Type		Antenna Not Included, U.FL
Modulation		DSSS, O-QPSK
RF Family/Standard		802.15.4
Serial Interfaces		I2C, SPI, UART
DigiKey Programmable		Not Verified

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8517.62.0090
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
