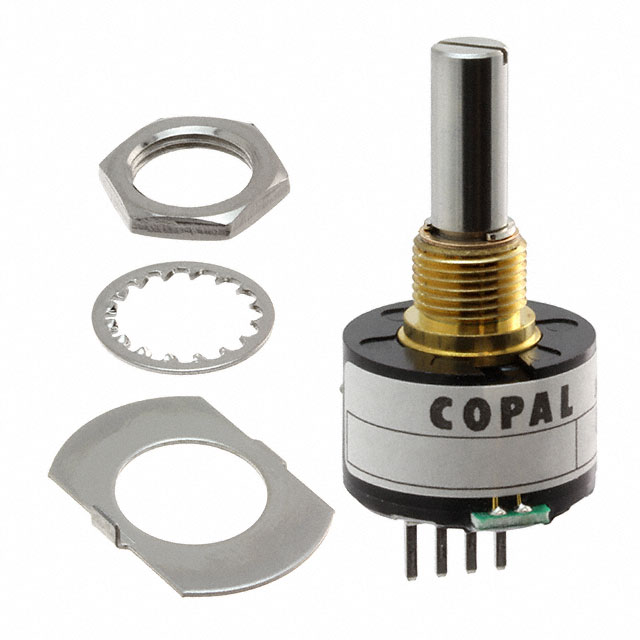

RES20-50-200

Part Number
RES20-50-200
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
563-2068-ND
-1793-RES20-50-200
563-2068
Description ROTARY ENCODER OPTICAL 50PPR
Detailed Description Rotary Encoder Optical 50 Quadrature (Incremental) User Selectable
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
RE
Packaging
Tray
Part Status Active
Output Type Quadrature (Incremental)
Mounting Type Panel, PCB Through Hole
Orientation User Selectable
Termination Style PC Pin
Voltage - Supply 5V
Encoder Type Optical
Detent No
Pulses per Revolution 50
Actuator Type Shaft
Built in Switch No
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets RES20-50-200

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8543.70.4500
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

In Stock: 5

Can ship immediately.
