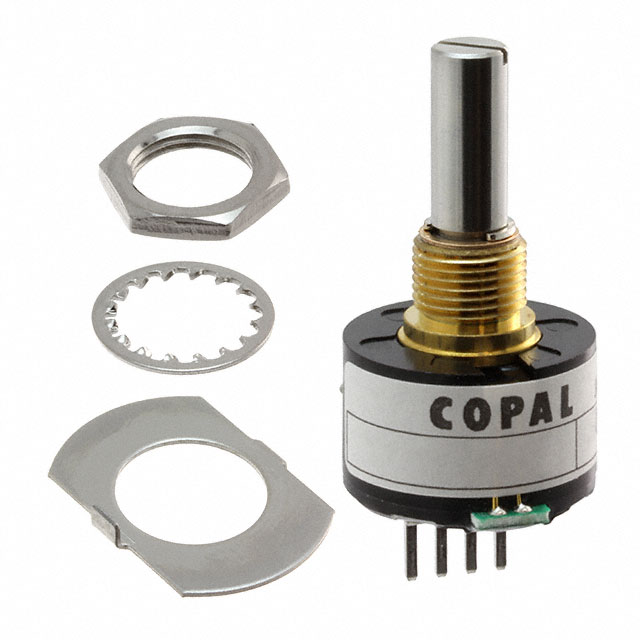

RES20-50-200-Z

RES20-50-200-Z

Part Number	RES20-50-200-Z
Manufacturer	Nidec Copal Electronics (Nidec Components)
Other Part Numbers	563-2070-ND 563-2070 -1793-RES20-50-200-Z
Description	ROTARY ENCODER OPTICAL 50PPR
Detailed Description	Rotary Encoder Optical 50 Quadrature (Incremental) User Selectable
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Encoders
Manufacturer		Nidec Copal Electronics (Nidec Components)
Series		RE
Packaging		Tray
Part Status		Last Time Buy
Output Type		Quadrature (Incremental)
Mounting Type		Panel Mount
Orientation		User Selectable
Termination Style		PC Pin
Voltage - Supply		5V
Encoder Type		Optical
Detent		No
Pulses per Revolution		50
Actuator Type		Shaft
Built in Switch		No
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RES20-50-200-Z
Datasheets		End of Life 21/DEC/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.4500
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 31

Can ship immediately.
