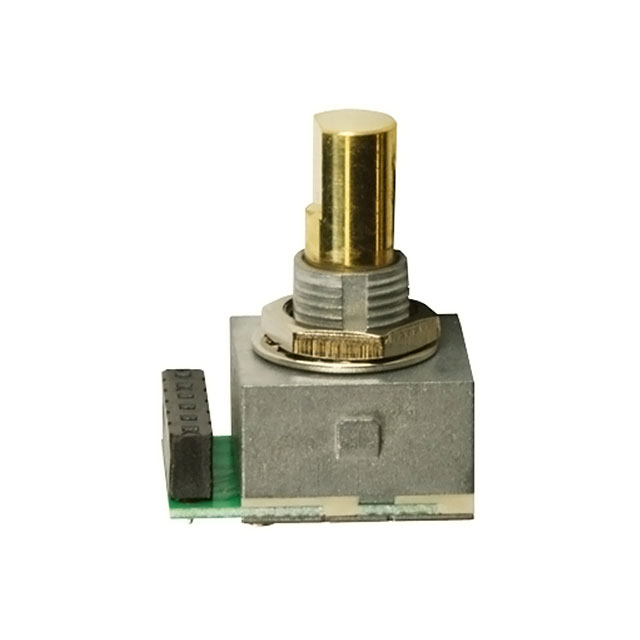

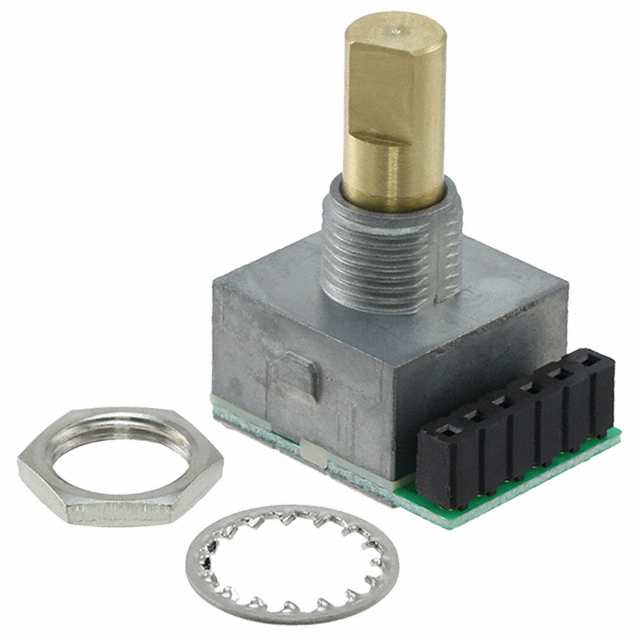

REC16K25-205-B

REC16K25-205-B

Part Number	REC16K25-205-B
Manufacturer	Nidec Copal Electronics (Nidec Components)
Other Part Numbers	563-1954-ND -1793-REC16K25-205-B 563-1954
Description	16MM MANUAL ENCODER, SINGLE SHAF
Detailed Description	Rotary Encoder Optical 25 Digital, Open Collector Vertical
Manufacturer Standard Lead Time	10 weeks

Product Attributes

Category		Sensors, Transducers Encoders
Manufacturer		Nidec Copal Electronics (Nidec Components)
Series		REC16K
Packaging		Box
Part Status		Active
Output Type		Digital, Open Collector
Mounting Type		PCB, Through Hole
Orientation		Vertical
Termination Style		PC Pin
Voltage - Supply		5V
Encoder Type		Optical
Detent		No
Pulses per Revolution		25
Actuator Type		6.35mm Dia Flatted End
Built in Switch		Yes
Rotational Life (Cycles Min)		2M
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		REC16K25-205-B

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.4500
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant

In Stock: 39

Can ship immediately.
