REB-B4C-BU

REB-B4C-BU

Part Number	REB-B4C-BU
Manufacturer	Adam Tech
Other Part Numbers	2057-REB-B4C-BU-ND 2057-REB-B4C-BU
Description	CONN TERM BLK FEED THRU 10-24AWG

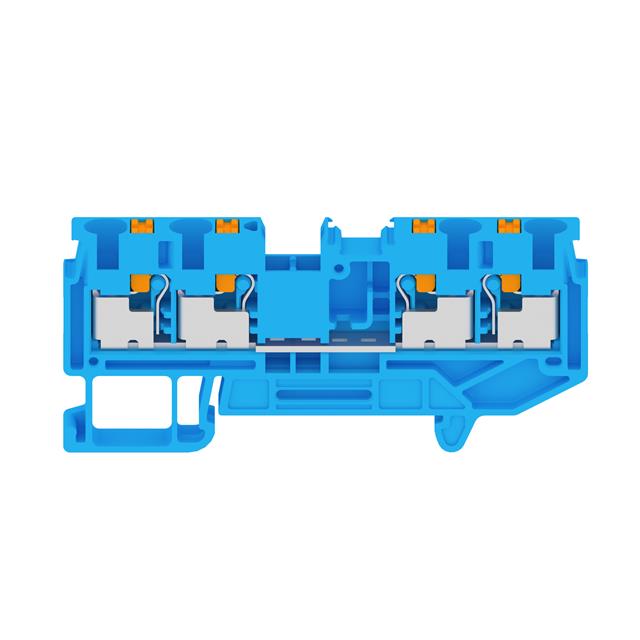

Detailed Description	Terminal Block Connector 4 Position Feed Through Blue 10-24 AWG
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Din Rail, Channel
Manufacturer		Adam Tech
Series		REB
Packaging		Box
Part Status		Active
Color		Blue
Type		Feed Through
Termination Style		Push In, Spring
Material - Insulation		Polyamide (PA66), Nylon 6/6
Material Flammability Rating		UL94 V-0
Number of Levels		1
Terminal - Width		6.2mm
Voltage - UL		600V
Wire Gauge or Range - AWG		10-24 AWG
Wire Gauge or Range - mm²		0.2-4mm²
Stripping Length		10mm ~ 12mm
Current - UL		30 A
Number of Positions		4

Documents & Media

RESOURCE TYPE		LINK
Datasheets		REB-B4C-BU

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
