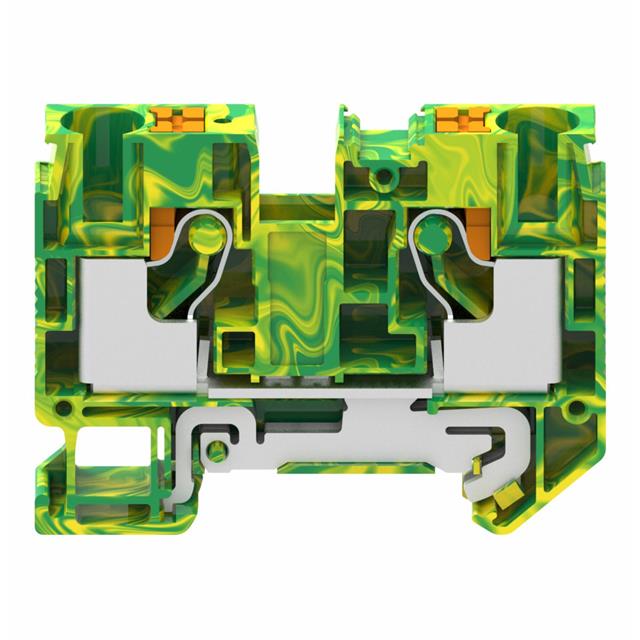

REB-B2E-YG

REB-B2E-YG

Part Number	REB-B2E-YG
Manufacturer	Adam Tech
Other Part Numbers	2057-REB-B2E-YG-ND 2057-REB-B2E-YG
Description	TERM BLK GND 6-20 AWG
Detailed Description	Terminal Block Connector 2 Position Feed Through Green, Yellow 6-20 AWG

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Din Rail, Channel
Manufacturer		Adam Tech
Series		REB
Packaging		Box
Part Status		Active
Color		Green, Yellow
Type		Feed Through
Termination Style		Push In, Spring
Material - Insulation		Polyamide (PA66), Nylon 6/6
Material Flammability Rating		UL94 V-0
Number of Levels		1
Terminal - Width		10.2mm
Voltage - UL		600V
Wire Gauge or Range - AWG		6-20 AWG
Wire Gauge or Range - mm²		0.5-10mm²
Stripping Length		18mm
Current - UL		60 A
Number of Positions		2

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 500

Can ship immediately.
