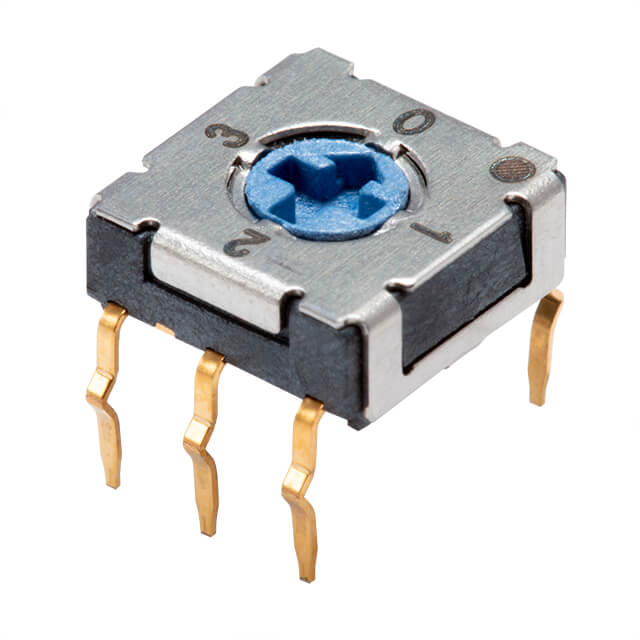

RDS-4S-7229-C-CR

RDS-4S-7229-C-CR

Part Number	RDS-4S-7229-C-CR
Manufacturer	CUI Devices
Other Part Numbers	2223-RDS-4S-7229-C-CR-ND 2223-RDS-4S-7229-C-CR
Description	SWITCH ROTARY DIP BCD 0.1A 50V
Detailed Description	Dip Switch BCD 4 Position Through Hole Rotary for Tool Actuator 100mA 50VDC
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches DIP Switches
Manufacturer		CUI Devices
Series		RDS-7229-CR
Packaging		Tube
Part Status		Active
Features		IP67 - Dust Tight, Waterproof
Contact Finish		Gold
Voltage Rating		50VDC
Current Rating (Amps)		100mA
Mounting Type		Through Hole
Pitch		0.100" (2.54mm), Full
Circuit		BCD
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Actuator Type		Rotary for Tool
Height Above Board		0.114" (2.90mm)
Actuator Level		Flush, Recessed
Washable		No
Contact Material		Copper Alloy
Number of Positions		4

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RDS-4S-7229-C-CR
Video File		DIP Switches 101
Environmental Information		RDS-7229-CR Series RoHS
Featured Product		7.2 mm Micro Rotary DIP Switches
Featured Product		IP67 Rated DIP Switches
Featured Product		Switch Solutions

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 15

Can ship immediately.
