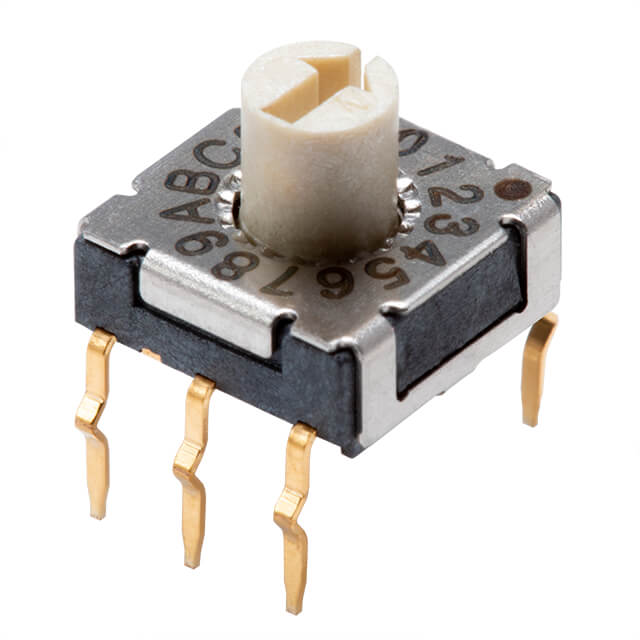

RDS-16S-7229-R-CR

RDS-16S-7229-R-CR

Part Number	RDS-16S-7229-R-CR
Manufacturer	CUI Devices
Other Part Numbers	2223-RDS-16S-7229-R-CR-ND 2223-RDS-16S-7229-R-CR
Description	SWITCH ROTARY DIP HEX 0.1A 50V
Detailed Description	Dip Switch Hexadecimal 16 Position Through Hole Rotary with Shaft Actuator 100mA 50VDC
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches DIP Switches
Manufacturer		CUI Devices
Series		RDS-7229-CR
Packaging		Tube
Part Status		Active
Features		IP67 - Dust Tight, Waterproof
Contact Finish		Gold
Voltage Rating		50VDC
Current Rating (Amps)		100mA
Mounting Type		Through Hole
Pitch		0.100" (2.54mm), Full
Circuit		Hexadecimal
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Actuator Type		Rotary with Shaft
Height Above Board		0.232" (5.90mm)
Actuator Level		Raised
Washable		No
Contact Material		Copper Alloy
Number of Positions		16

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RDS-16S-7229-R-CR
Video File		DIP Switches 101
Environmental Information		RDS-7229-CR Series RoHS
Featured Product		7.2 mm Micro Rotary DIP Switches
Featured Product		IP67 Rated DIP Switches
Featured Product		Switch Solutions

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 490

Can ship immediately.
