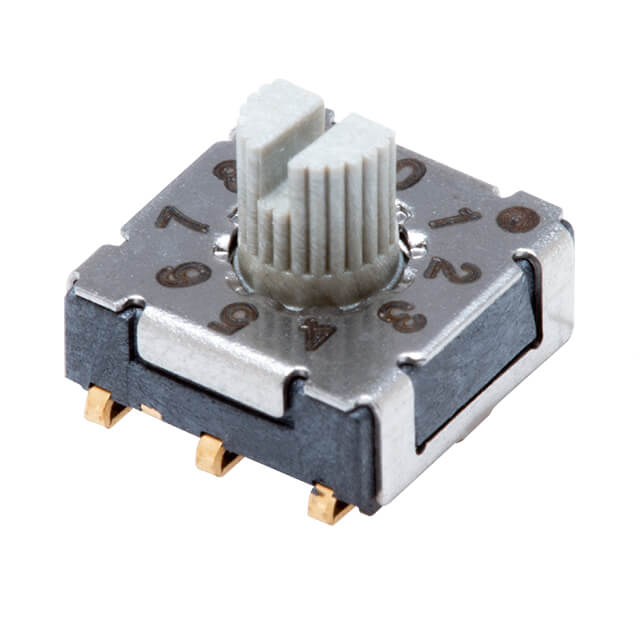

RDS-10S-7229-S-JSMT

RDS-10S-7229-S-JSMT

Part Number	RDS-10S-7229-S-JSMT
Manufacturer	CUI Devices
Other Part Numbers	2223-RDS-10S-7229-S-JSMT-ND 2223-RDS-10S-7229-S-JSMT
Description	SWITCH ROTARY DIP BCD 0.1A 50V
Detailed Description	Dip Switch BCD 10 Position Surface Mount Rotary with Shaft Actuator 100mA 50VDC
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches DIP Switches
Manufacturer		CUI Devices
Series		RDS-7229-JSMT
Packaging		Tube
Part Status		Active
Features		IP67 - Dust Tight, Waterproof
Contact Finish		Gold
Voltage Rating		50VDC
Current Rating (Amps)		100mA
Mounting Type		Surface Mount
Pitch		0.100" (2.54mm), Full
Circuit		BCD
Operating Temperature		-40°C ~ 85°C
Termination Style		J Lead
Actuator Type		Rotary with Shaft
Height Above Board		0.236" (6.00mm)
Actuator Level		Raised
Washable		No
Contact Material		Copper Alloy
Number of Positions		10

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RDS-10S-7229-S-JSMT
Video File		DIP Switches 101
Environmental Information		RDS-7229-JSMT Series RoHS
Featured Product		7.2 mm Micro Rotary DIP Switches
Featured Product		IP67 Rated DIP Switches
Featured Product		Switch Solutions
HTML Datasheet		RDS-7229-JSMT Series Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
