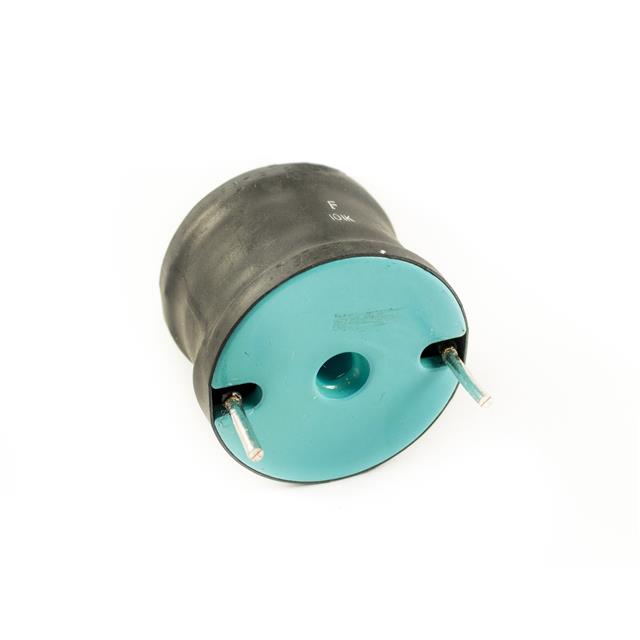

RDC60-223K-RC

RDC60-223K-RC

Part Number	RDC60-223K-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-RDC60-223K-RC-ND 3475-RDC60-223K-RC
Description	22000UH 10% RADIAL DRUM CORE
Detailed Description	22 mH Unshielded Drum Core, Wirewound Inductor 2 A 2.74Ohm Max Radial, Vertical Cylinder
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		RDC60
Packaging		Box
Part Status		Active
Tolerance		±10%
Package / Case		Radial, Vertical Cylinder
Size / Dimension		2.000" Dia (50.80mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		2.74Ohm Max
Current - Saturation (Isat)		1.8A
Inductance Frequency - Test		1 kHz
Supplier Device Package		Radial
Height - Seated (Max)		1.500" (38.10mm)
Inductance		22 mH
Current Rating (Amps)		2 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RDC60-223K-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
