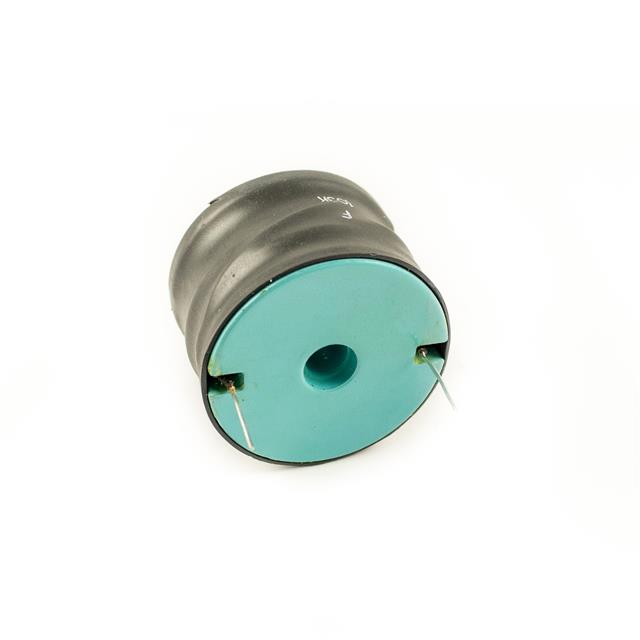

RDC40-151K-RC

RDC40-151K-RC

Part Number	RDC40-151K-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-RDC40-151K-RCTR-ND 3475-RDC40-151K-RCTR
Description	150uH +/-10% Radial Drum Core
Detailed Description	150 µH Unshielded Drum Core Inductor 11.4 A 40mOhm Max Radial, Vertical Cylinder
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		RDC40
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±10%
Package / Case		Radial, Vertical Cylinder
Size / Dimension		1.500" Dia (38.10mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Drum Core
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		40mOhm Max
Current - Saturation (Isat)		16.4A
Supplier Device Package		Radial
Height - Seated (Max)		1.030" (26.16mm)
Inductance		150 µH
Current Rating (Amps)		11.4 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RDC40-151K-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
