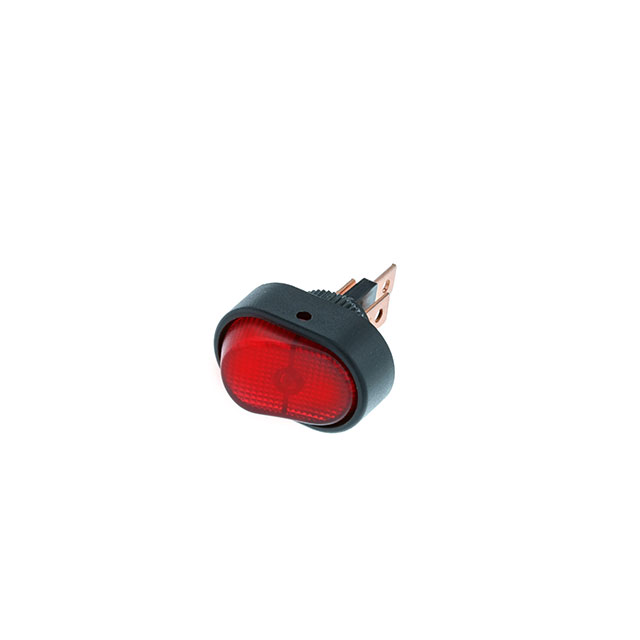

RD1-1A-DC-1-RL

RD1-1A-DC-1-RL

Part Number	RD1-1A-DC-1-RL
Manufacturer	Switch Components
Other Part Numbers	2299-RD1-1A-DC-1-RL-ND 2299-RD1-1A-DC-1-RL
Description	SWITCH ROCKER SPST 30A 12V
Detailed Description	Rocker Switch SPST 30A (DC) Panel Mount, Threaded Body with Nut
Datasheet	Datasheet

Product Attributes

Category		Switches Rocker Switches
Manufacturer		Switch Components
Series		RD1
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		30A (DC)
Mounting Type		Panel Mount, Threaded Body with Nut
Circuit		SPST
Switch Function		On-Off
Operating Temperature		-25°C ~ 85°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Illumination Type, Color		LED, Red
Illumination Voltage (Nominal)		12 VDC
Actuator Type		Concave (Curved) - Illuminated
Panel Cutout Dimensions		Circular - 12.20mm Dia
Color - Actuator/Cap		Red
Actuator Marking		No Marking
Voltage Rating - DC		12 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RD1-1A-DC-1-RL

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
