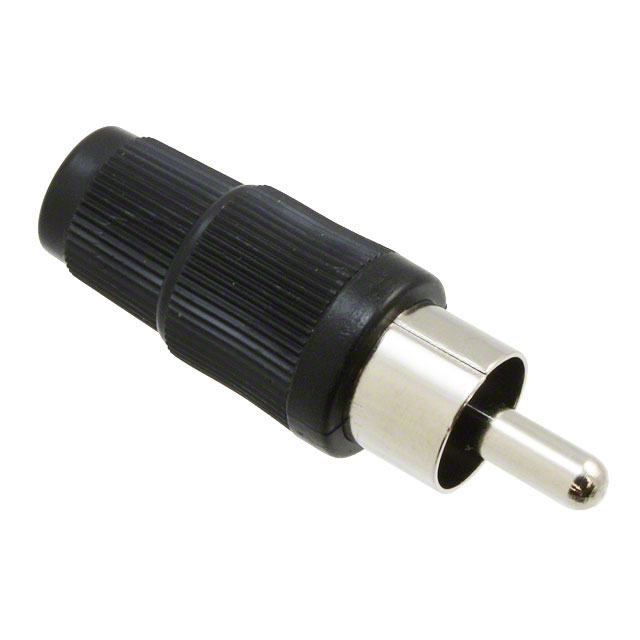

RCP-011 _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	RCP-011
Manufacturer	CUI Devices
Other Part Numbers	CP-1447-ND CP-1447 045-0708R RCP011 CP-1447-NDR
Description	CONN RCA PLUG MONO 2COND
Detailed Description	3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Plug Mono Connector Solder Eyelet(s)
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		CUI Devices
Series		RCP
Packaging		Bag
Part Status		Obsolete
Voltage - Rated		12VDC
Connector Type		Phono (RCA) Plug
Gender		Male
Mounting Type		Free Hanging (In-Line)
Shielding		Unshielded
Operating Temperature		-20°C ~ 85°C
Number of Positions/Contacts		2 Conductors, 2 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Mono
Termination		Solder Eyelet(s)
Includes		2 pcs - 1 Connector, 1 Handle
Contact Material		Brass
Housing Material		Acrylonitrile Butadiene Styrene (ABS)
Body Material		Brass
Body Color		Silver, Black
Contact Material - Plating		Nickel
Actual Diameter		0.126" (3.20mm ID), 0.354" (9.00mm OD)
Mating Length/Depth		0.563" (14.30mm)
Industry Recognized Mating Diameter		3.20mm ID, 9.00mm OD (RCA)
Current Rating (Amps)		5 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
