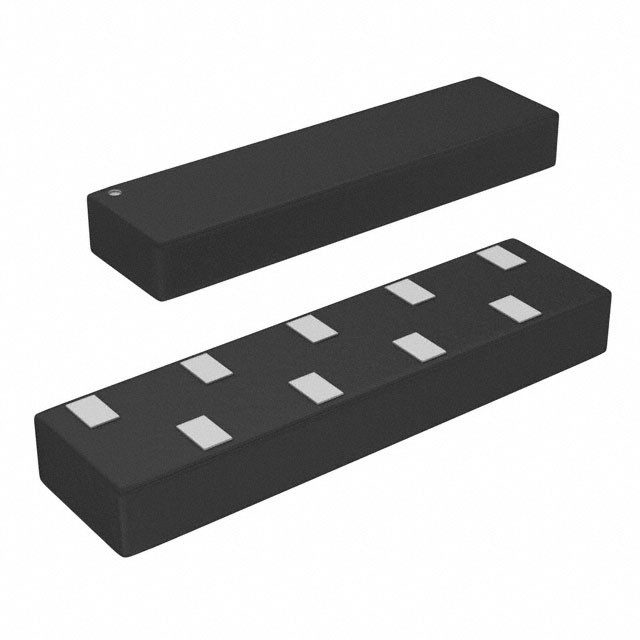

RCLAMP0518PQTNT

RCLAMP0518PQTNT

Part Number	RCLAMP0518PQTNT
Manufacturer	Semtech
Other Part Numbers	600-RCLAMP0518PQTNTTR-ND 600-RCLAMP0518PQTNTCT-ND 600-RCLAMP0518PQTNTDKR-ND 600-RCLAMP0518PQTNTTR 600-RCLAMP0518PQTNTCT 600-RCLAMP0518PQTNTDKR
Description	8-LINE 5V 1.5PF 0.05R 10A ESD SG
Detailed Description	10V Clamp 10A Ipp Tvs Diode Surface Mount SGF2708N9
Manufacturer Standard Lead Time	13 weeks

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Semtech
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		9-UDFN
Mounting Type		Surface Mount
Type		Steering (Rail to Rail)
Operating Temperature		-40°C ~ 125°C (TJ)
Applications		Ethernet
Capacitance @ Frequency		1pF @ 1MHz
Current - Peak Pulse (10/1000µs)		10A
Voltage - Reverse Standoff (Typ)		5V (Max)
Supplier Device Package		SGF2708N9
Unidirectional Channels		8
Voltage - Breakdown (Min)		6.5V
Voltage - Clamping (Max) @ Ipp		10V
Power - Peak Pulse		100W
Power Line Protection		Yes

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5975

Can ship immediately.
