R5F56609BGFM#30 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	R5F56609BGFM#30
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	559-R5F56609BGFM#30-ND 559-R5F56609BGFM#30 -1161-R5F56609BGFM#30
Description	MCU:RX
Detailed Description	RXv3 RX600 Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 64-LFQFP (10x10)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Intersil (Renesas Electronics Corporation)
Series		RX600
Packaging		Tray
Part Status		Active

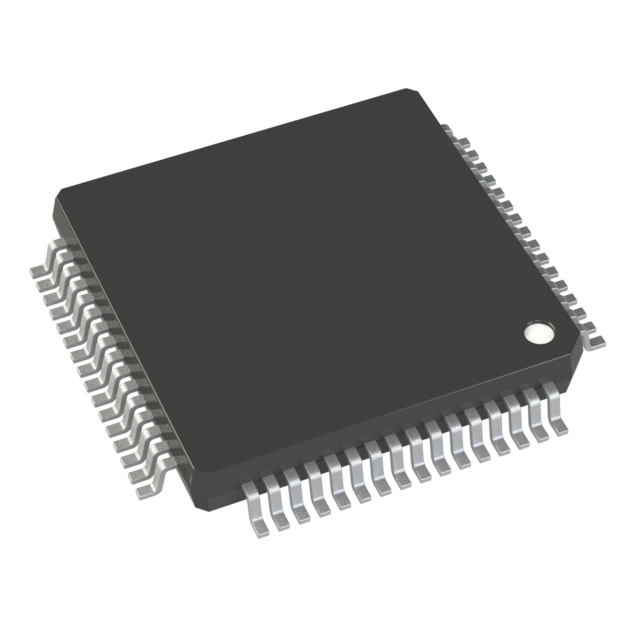

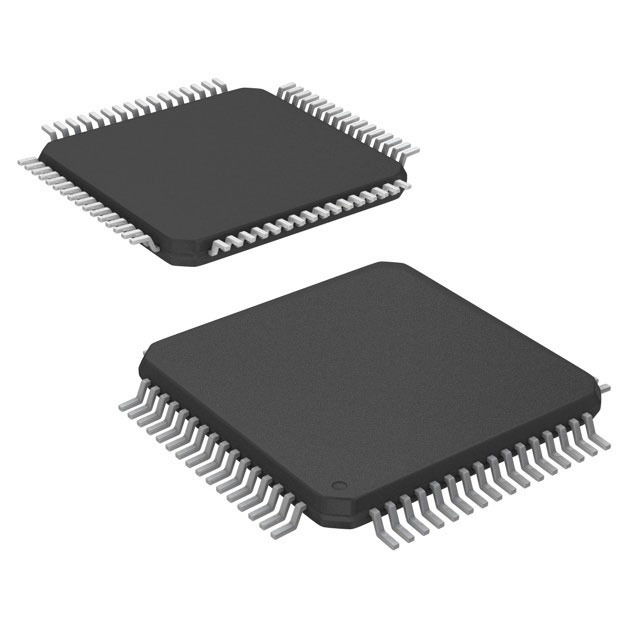

Package / Case		64-LQFP
Mounting Type		Surface Mount
Speed		120MHz
Program Memory Size		1MB (1M x 8)
RAM Size		128K x 8
Operating Temperature		-40°C ~ 105°C (TA)
Oscillator Type		External, Internal
Program Memory Type		FLASH
EEPROM Size		32K x 8
Core Processor		RXv3
Data Converters		A/D 14x12b; D/A 2x12b
Core Size		32-Bit
Voltage - Supply (Vcc/Vdd)		2.7V ~ 5.5V
Connectivity		CANbus, EBI/EMI, I2C, LINbus, SCI, SPI
Peripherals		DMA, LVD, POR, PWM, WDT
Supplier Device Package		64-LFQFP (10x10)
Number of I/O		55

RESOURCE TYPE		LINK
Datasheets		R5F56609BGFM#30

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant

Can ship immediately.
