R5F56604ADFL#10 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	R5F56604ADFL#10
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	559-R5F56604ADFL#10TR-ND 559-R5F56604ADFL#10TR
Description	IC MCU 32BIT 512KB FLASH 48LQFP
Detailed Description	RXv3 RX600 Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 48-LFQFP (7x7)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Intersil (Renesas Electronics Corporation)
Series		RX600
Packaging		Tape & Reel (TR)
Part Status		Active

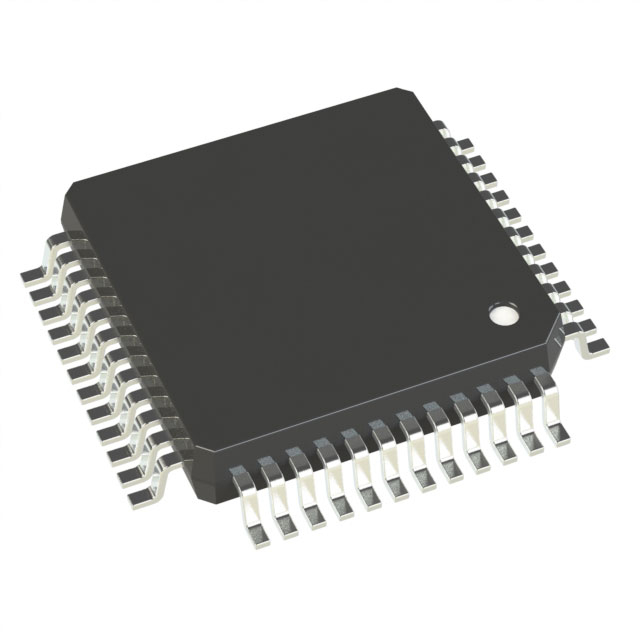

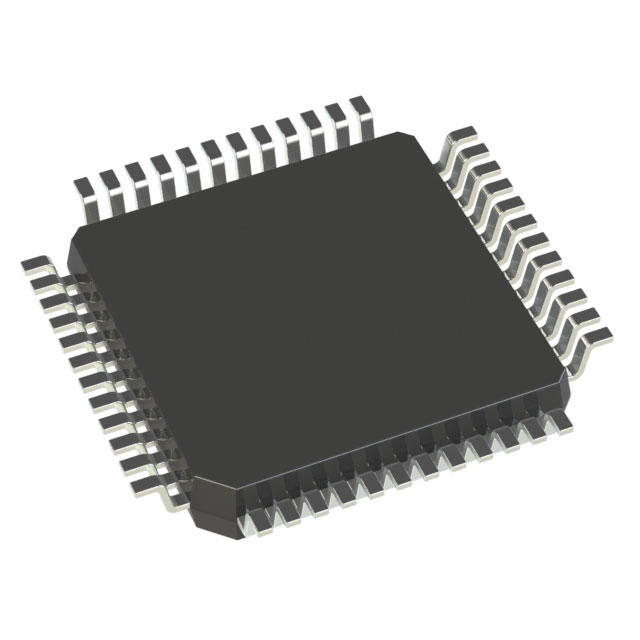

Package / Case		48-LQFP
Mounting Type		Surface Mount
Speed		120MHz
Program Memory Size		512KB (512K x 8)
RAM Size		128K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		External, Internal
Program Memory Type		FLASH
EEPROM Size		32K x 8
Core Processor		RXv3
Data Converters		A/D 10x12b; D/A 2x12b
Core Size		32-Bit
Voltage - Supply (Vcc/Vdd)		2.7V ~ 5.5V
Connectivity		CANbus, EBI/EMI, I2C, LINbus, SCI, SPI
Peripherals		DMA, LVD, POR, PWM, WDT
Supplier Device Package		48-LFQFP (7x7)
Number of I/O		39

RESOURCE TYPE		LINK
Datasheets		R5F56604ADFL#10

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
