R5F564MFCGFC#V1 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	R5F564MFCGFC#V1
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	559-R5F564MFCGFC#V1-ND 559-R5F564MFCGFC#V1
Description	IC MCU 32BIT 2MB FLASH 176LQFP
Detailed Description	RXv2 RX Microcontroller IC 32-Bit 120MHz 2MB (2M x 8) FLASH 176-LFQFP (24x24)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Intersil (Renesas Electronics Corporation)
Series		RX
Packaging		Tray
Part Status		Active

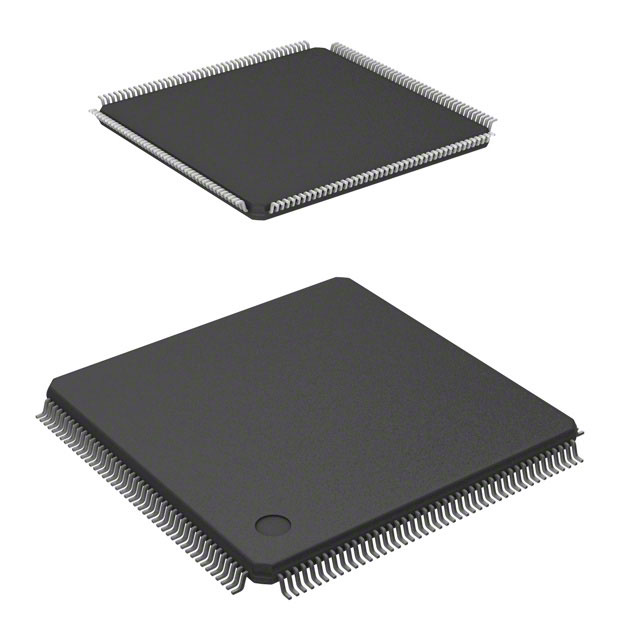

Package / Case		176-LQFP
Mounting Type		Surface Mount
Speed		120MHz
Program Memory Size		2MB (2M x 8)
RAM Size		512K x 8
Operating Temperature		-40°C ~ 105°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		64K x 8
Core Processor		RXv2
Data Converters		A/D 29x12b; D/A 2x12b
Core Size		32-Bit
Voltage - Supply (Vcc/Vdd)		2.7V ~ 3.6V
Connectivity		CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB
Peripherals		DMA, LVD, POR, PWM, WDT
Supplier Device Package		176-LFQFP (24x24)
Number of I/O		127

RESOURCE TYPE		LINK
Datasheets		R5F564MFCGFC#V1

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
