R5F51403ADNH#30 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	R5F51403ADNH#30
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	559-R5F51403ADNH#30-ND 559-R5F51403ADNH#30
Description	IC MCU 32BIT 64KB FLASH 32WFQFN
Detailed Description	RXv2 RX140 Microcontroller IC 32-Bit Single-Core 48MHz 64KB (64K x 8) FLASH 32-HWQFN (5x5)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Intersil (Renesas Electronics Corporation)
Series		RX140
Packaging		Tray
Part Status		Active

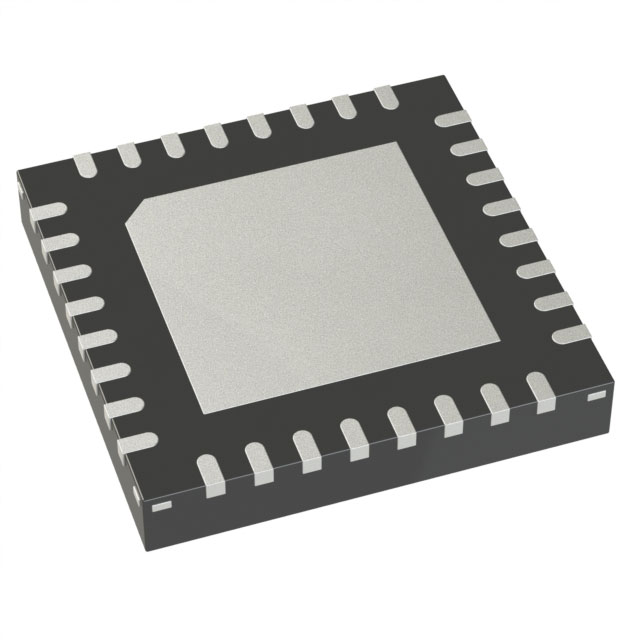

Package / Case		32-WFQFN Exposed Pad
Mounting Type		Surface Mount
Speed		48MHz
Program Memory Size		64KB (64K x 8)
RAM Size		16K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		4K x 8
Core Processor		RXv2
Data Converters		A/D 8x12b
Core Size		32-Bit Single-Core
Voltage - Supply (Vcc/Vdd)		1.8V ~ 5.5V
Connectivity		I2C, SCI, SPI
Peripherals		Capacitive Touch, DMA, LVD, POR, PWM, Temp Sensor, WDT
Supplier Device Package		32-HWQFN (5x5)
Number of I/O		23

RESOURCE TYPE		LINK
Datasheets		R5F51403ADNH#30

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
