R5F1214AGSP#10 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	R5F1214AGSP#10
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	559-R5F1214AGSP#10-ND 559-R5F1214AGSP#10
Description	16BIT MCU RL78/G16 16K 16LSSOP -
Detailed Description	RL78 RL78/G16 Microcontroller IC 16-Bit 16MHz 16KB (16K x 8) FLASH 16-SSOP
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Intersil (Renesas Electronics Corporation)
Series		RL78/G16
Packaging		Tray
Part Status		Active

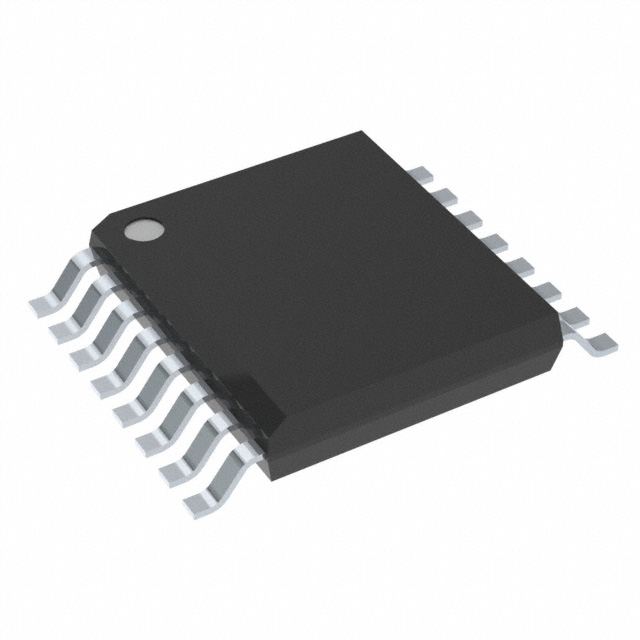

Package / Case		16-SSOP (0.173", 4.40mm Width)
Mounting Type		Surface Mount
Speed		16MHz
Program Memory Size		16KB (16K x 8)
RAM Size		2K x 8
Operating Temperature		-40°C ~ 105°C (TA)
Oscillator Type		External, Internal
Program Memory Type		FLASH
EEPROM Size		1K x 8
Core Processor		RL78
Data Converters		A/D 7x8/10b
Core Size		16-Bit
Voltage - Supply (Vcc/Vdd)		2.4V ~ 5.5V
Connectivity		CSI, I2C, SPI, UART/USART
Peripherals		Capacitive Touch, POR, PWM, Voltage Detect, WDT
Supplier Device Package		16-SSOP
Number of I/O		13

RESOURCE TYPE		LINK
Datasheets		R5F1214AGSP#10

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
