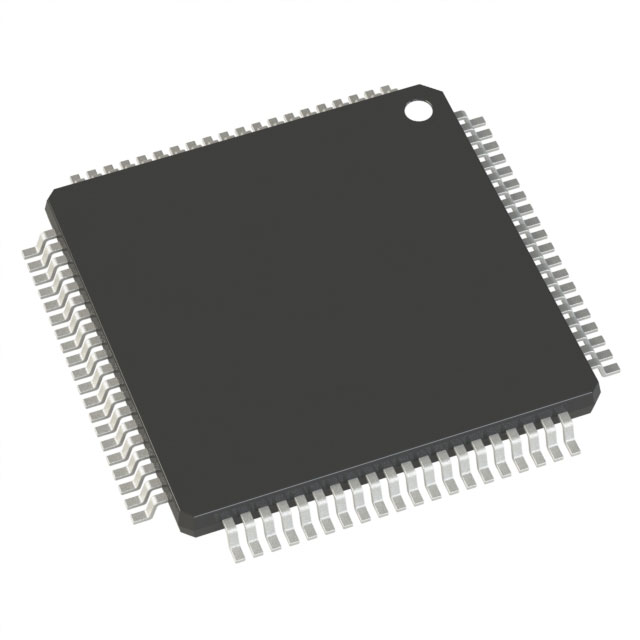

R5F11NMEAFB#70 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	R5F11NMEAFB#70
Manufacturer	Intersil (Renesas Electronics Corporation)
Other Part Numbers	559-R5F11NMEAFB#70-ND 559-R5F11NMEAFB#70
Description	16BIT MCU RL78/H1D 64K LFQFP80 -
Detailed Description	RL78 RL78/H1D Microcontroller IC 16-Bit 24MHz 64KB (64K x 8) FLASH 80-LQFP (12x12)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Intersil (Renesas Electronics Corporation)
Series		RL78/H1D
Packaging		Tray
Part Status		Active
Package / Case		80-LQFP
Mounting Type		Surface Mount
Speed		24MHz
Program Memory Size		64KB (64K x 8)
RAM Size		5.5K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		4K x 8
Core Processor		RL78
Data Converters		A/D 5x8b SAR, 5x10b Sigma-Delta; D/A 1x8b
Core Size		16-Bit
Voltage - Supply (Vcc/Vdd)		2.4V ~ 5.5V
Connectivity		CSI, I2C, SPI, UART/USART
Peripherals		LCD, LVD, POR, PWM, WDT
Supplier Device Package		80-LQFP (12x12)
Number of I/O		46

RESOURCE TYPE		LINK
Datasheets		R5F11NMEAFB#70

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
