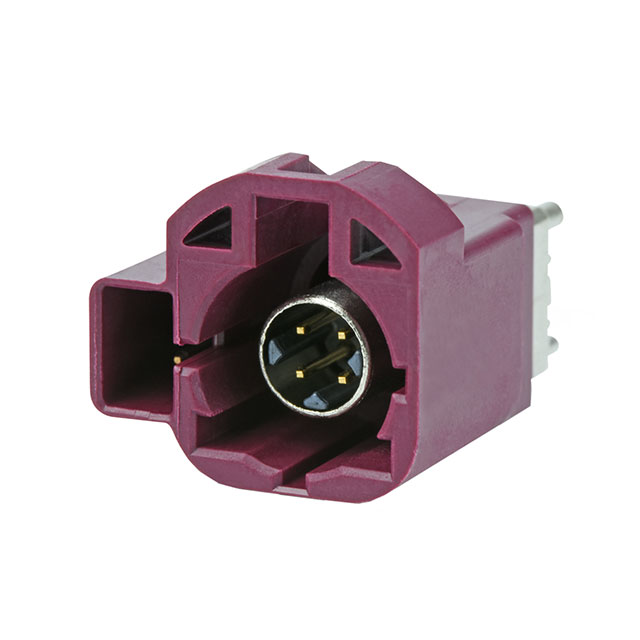

R41-A717D _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	R41-A717D
Manufacturer	Mitsumi Electric Company Ltd
Other Part Numbers	P124191-2-ND P124191-1-ND P124191-6 P124191-6-ND P124191-2 P124191-1 R41-B277D P124191-6INACTIVE
Description	CONN HSD 4+2 NORMAL VERTICAL TYP
Detailed Description	HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole Solder
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Mitsumi Electric Company Ltd
Series		HSD
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide, Code D
Connector Type		Plug, Male Pin
Contact Termination		Solder
Impedance		100 Ohms
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 105°C
Insertion Loss		0.10dB
Fastening Type		Latch Lock
Connector Style		HSD®, Fakra, Quadraxial
Dielectric Material		Liquid Crystal Polymer (LCP)
Housing Color		Violet, Claret
Mating Cycles		25
Shield Termination		Solder
Center Contact Material		Copper Alloy
Frequency - Max		2 GHz
Number of Ports		1
Voltage Rating		100 V

RESOURCE TYPE		LINK
Datasheets		R41-A717D

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
