R302255001100

R302255001100

Part Number	R302255001100
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-R302255001100-ND R302.255.100 2201-R302255001100

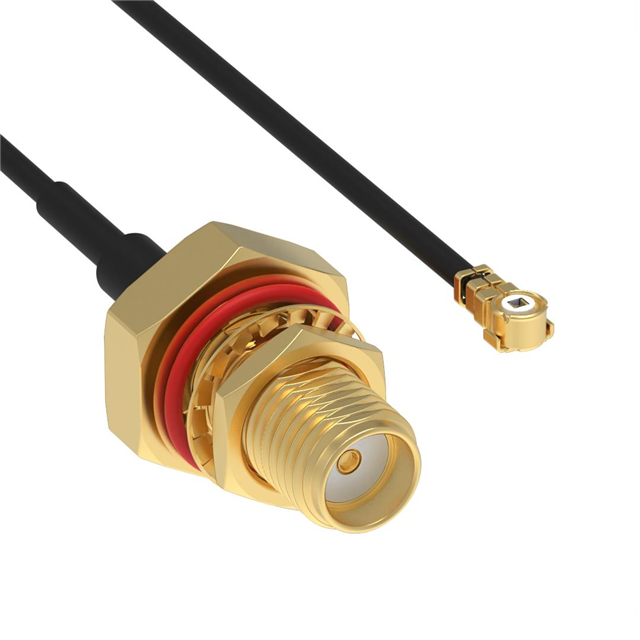

Description	CBL ASSY MML-SMA JACK-PLG 3.937"
Detailed Description	Cable Assembly Coaxial MML to SMA 3.937" (100.00mm)
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Cable Assemblies Coaxial Cables (RF)
Manufacturer		Radiall USA, Inc.
Series		MML
Packaging		Bulk
Part Status		Active
Color		Black
Length		3.937" (100.00mm)
Style		MML to SMA
Operating Temperature		-40°C ~ 90°C
1st Connector		SMA Jack
2nd Connector		MML Plug, Right Angle
Frequency - Max		6 GHz
1st Connector Mounting Type		Panel Mount
2nd Connector Mounting Type		Free Hanging (In-Line)
1st Contact Gender		Female
2nd Contact Gender		Male
Overall Impedance		50 Ohms
1st Connector Mounting Feature		Bulkhead - Front Side Nut

Documents & Media

RESOURCE TYPE		LINK
Datasheets		R302255001100

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.20.0000
Moisture Sensitivity Level (MSL)		Not Applicable
