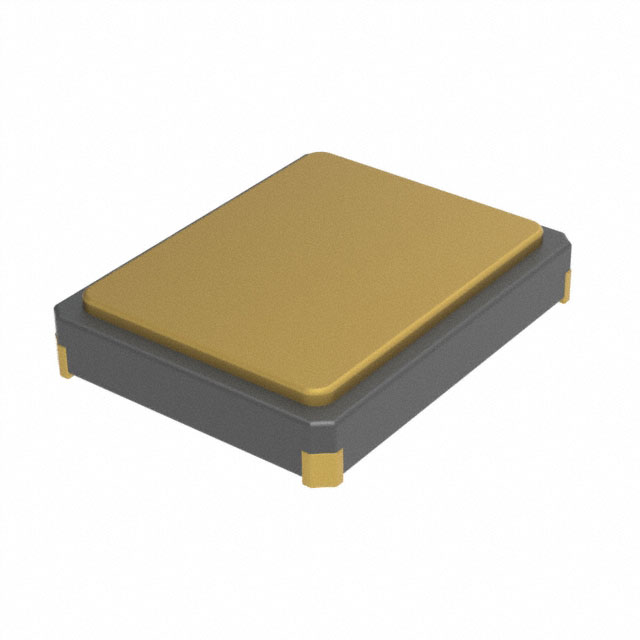

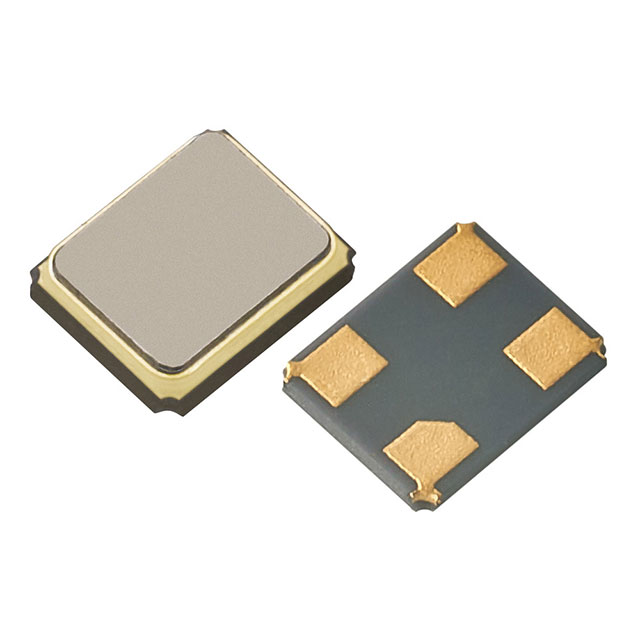

R2016-32.000-9-F-1025-EXT-TR

R2016-32.000-9-F-1025-EXT-TR

Part Number	R2016-32.000-9-F-1025-EXT-TR
Manufacturer	Raltron
Other Part Numbers	2151-R2016-32.000-9-F-1025-EXT-TR-ND 2151-R2016-32.000-9-F-1025-EXT-TRCT-ND 2151-R2016-32.000-9-F-1025-EXT-TRDKR-ND 2151-R2016-32.000-9-F-1025-EXT-TRDKR 2151-R2016-32.000-9-F-1025-EXT-TRCT 2151-R2016-32.000-9-F-1025-EXT-TR
Description	CRYSTAL 32.0000MHZ 9PF SMD
Detailed Description	32 MHz ±10ppm Crystal 9pF 100 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		R2016
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		9pF
Size / Dimension		0.079" L x 0.063" W (2.00mm x 1.60mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±25ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.020" (0.50mm)
ESR (Equivalent Series Resistance)		100 Ohms
Frequency		32 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		R2016-32.000-9-F-1025-EXT-TR
Datasheets		R2016 Series Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2749

Can ship immediately.
