R2016-30.000-8-F-1010-TR-NS1

R2016-30.000-8-F-1010-TR-NS1

Part Number	R2016-30.000-8-F-1010-TR-NS1
Manufacturer	Raltron
Other Part Numbers	2151-R2016-30.000-8-F-1010-TR-NS1CT-ND 2151-R2016-30.000-8-F-1010-TR-NS1DKR-ND 2151-R2016-30.000-8-F-1010-TR-NS1CT 2151-R2016-30.000-8-F-1010-TR-NS1DKR 2151-R2016-30.000-8-F-1010-TR-NS1TR -2344-R2016-30.000-8-F-1010-TR-NS1CT

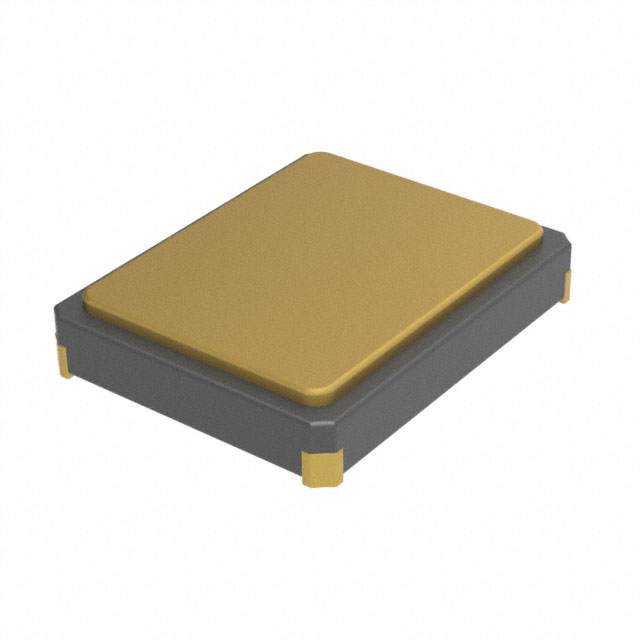

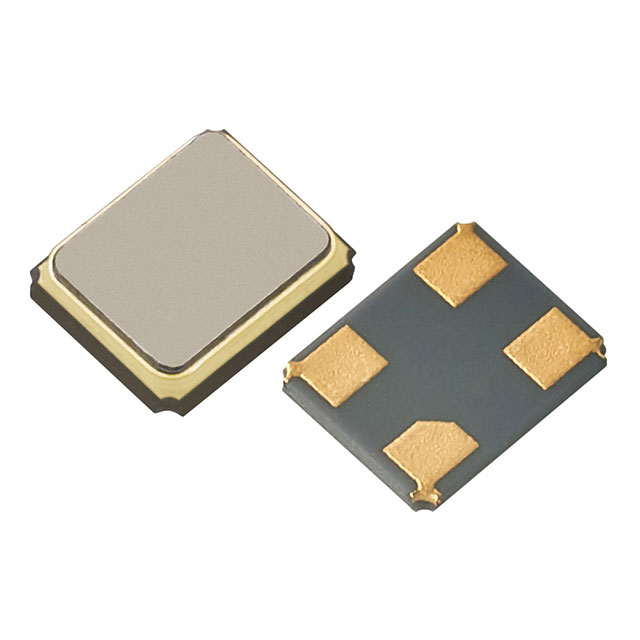

Description	CRYSTAL 30.0000MHZ 8PF SMD
Detailed Description	30 MHz ±10ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		R2016
Packaging		Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		8pF
Size / Dimension		0.079" L x 0.063" W (2.00mm x 1.60mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 60°C
Frequency Stability		±10ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.020" (0.50mm)
ESR (Equivalent Series Resistance)		100 Ohms
Frequency		30 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		R2016-30.000-8-F-1010-TR-NS1
Datasheets		R2016 Series Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2942

Can ship immediately.
