R191620027 _ Coaxial Connector (RF) Adapters_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	R191620027
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-R191620027-ND 2201-R191620027 R191.620.027 2266-R191620027
Description	NEX 10 F-N F STR

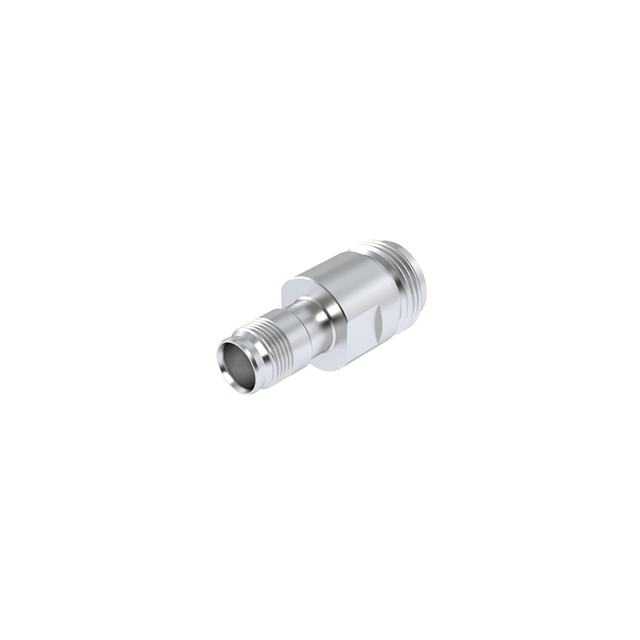

Detailed Description	Adapter Coaxial Connector NEX10 Jack, Female Socket To N Jack, Female Socket 50 Ohms
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		NEX10 Jack, Female Socket
Convert To (Adapter End)		N Jack, Female Socket
Operating Temperature		-55°C ~ 125°C
Fastening Type		Threaded, Threaded
Dielectric Material		Polytetrafluoroethylene (PTFE)
Adapter Series		NEX10 to N
Adapter Type		Jack to Jack
Center Gender		Female to Female
Conversion Type		Between Series
Body Material		Brass
Mating Cycles		100
Center Contact Material		Beryllium Copper
Center Contact Plating		Silver
Frequency - Max		11 GHz

RESOURCE TYPE		LINK
Datasheets		R191620027

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
