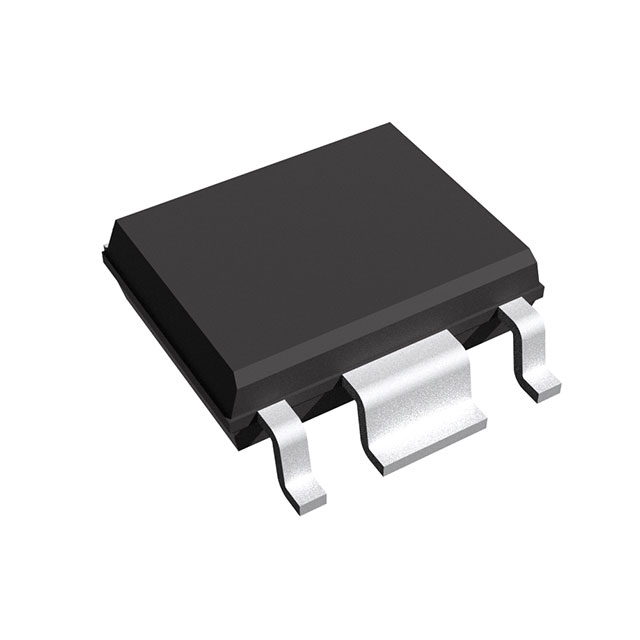

R1517S502D-E2-KE

R1517S502D-E2-KE

Part Number	R1517S502D-E2-KE
Manufacturer	RICOH/Nisshinbo Micro Devices
Other Part Numbers	R1517S502D-E2-KE-ND
Description	IC REG LINEAR 5V 500MA 6HSOP
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 6-HSOP-J
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		RICOH/Nisshinbo Micro Devices
Series		R1517x
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		500mA
Operating Temperature		-40°C ~ 125°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		36 µA
Voltage - Input (Max)		36V
Number of Regulators		1
Supplier Device Package		6-HSOP-J
Voltage - Output (Min/Fixed)		5V
Control Features		Enable
Voltage Dropout (Max)		0.62V @ 500mA
Protection Features		Over Current, Over Temperature

Documents & Media

RESOURCE TYPE		LINK
Datasheets		R1517S502D-E2-KE

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
