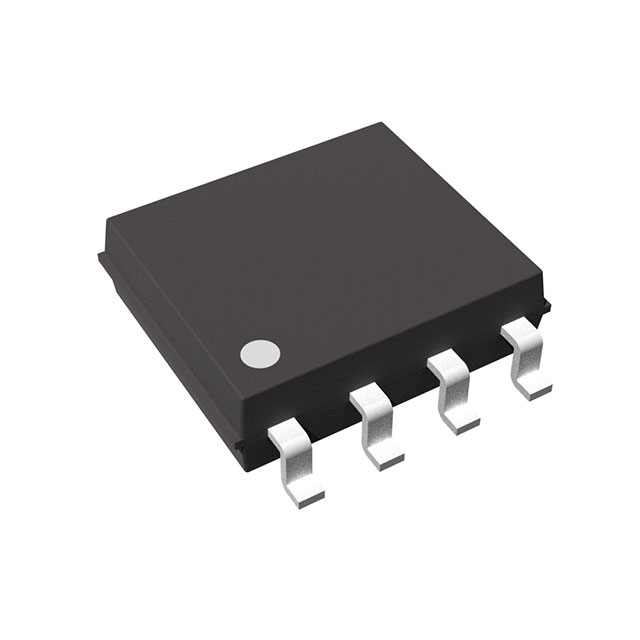

R1510S009D-E2-FE

R1510S009D-E2-FE

Part Number	R1510S009D-E2-FE
Manufacturer	RICOH/Nisshinbo Micro Devices
Other Part Numbers	R1510S009D-E2-FE-ND
Description	IC REG LINEAR 12V 300MA 8HSOP
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 8-HSOP-E
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		RICOH/Nisshinbo Micro Devices
Series		R1510S
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		8-SOIC (0.173", 4.40mm Width) Exposed Pad
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		300mA
Operating Temperature		-40°C ~ 105°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		174 µA
Voltage - Input (Max)		36V
Number of Regulators		1
Supplier Device Package		8-HSOP-E
Voltage - Output (Min/Fixed)		12V
Control Features		Enable
Voltage Dropout (Max)		2V @ 300mA
Protection Features		Over Current, Over Temperature

Documents & Media

RESOURCE TYPE		LINK
Datasheets		R1510S009D-E2-FE

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
