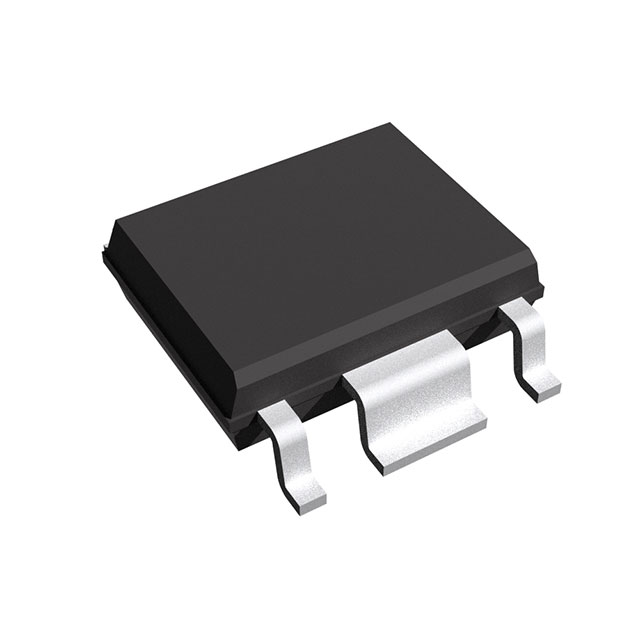

R1501S180B-E2-FE _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	R1501S180B-E2-FE
Manufacturer	RICOH/Nisshinbo Micro Devices
Other Part Numbers	R1501S180B-E2-FE-ND
Description	IC REG LINEAR 18V 1A 6HSOP
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 1A 6-HSOP-J
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		RICOH/Nisshinbo Micro Devices
Series		R1501x
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		1A
Operating Temperature		-40°C ~ 105°C
Output Configuration		Positive
Current - Quiescent (Iq)		160 µA
Voltage - Input (Max)		24V
Number of Regulators		1
Supplier Device Package		6-HSOP-J
Voltage - Output (Min/Fixed)		18V
Control Features		Enable
PSRR		50dB (1kHz)
Voltage Dropout (Max)		0.7V @ 1A
Protection Features		Over Current, Over Temperature, Short Circuit

RESOURCE TYPE		LINK
Datasheets		R1501S180B-E2-FE

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
