R143083000 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	R143083000
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-R143083000-ND R143.083.000 2201-R143083000
Description	TNC M STR CR 5/50

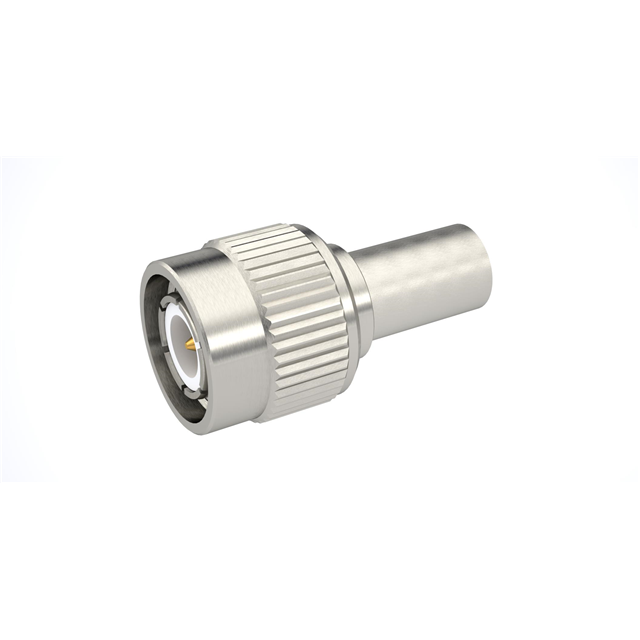

Detailed Description	TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Crimp
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Cable Group		RG-142, 223, 400
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.18dB
Fastening Type		Threaded
Includes		3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Connector Style		TNC
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Silver
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Brass
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		11 GHz
Number of Ports		1
Voltage Rating		500 V

RESOURCE TYPE		LINK
Datasheets		R143083000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

Can ship immediately.
