R125052702 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	R125052702
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-R125052702-ND R125.052.702 2201-R125052702

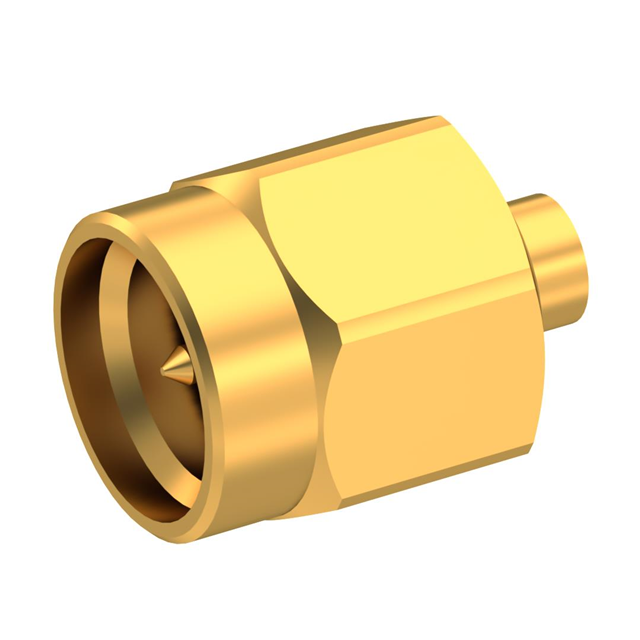

Description	SMA / STRAIGHT PLUG SOLDER TYPE
Detailed Description	SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Cable Group		RG-405 (.085" Semi Rigid)
Operating Temperature		-65°C ~ 105°C
Fastening Type		Threaded
Connector Style		SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Stainless Steel
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Brass
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		27 GHz
Number of Ports		1
Voltage Rating		335 V

RESOURCE TYPE		LINK
Datasheets		R125052702

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
