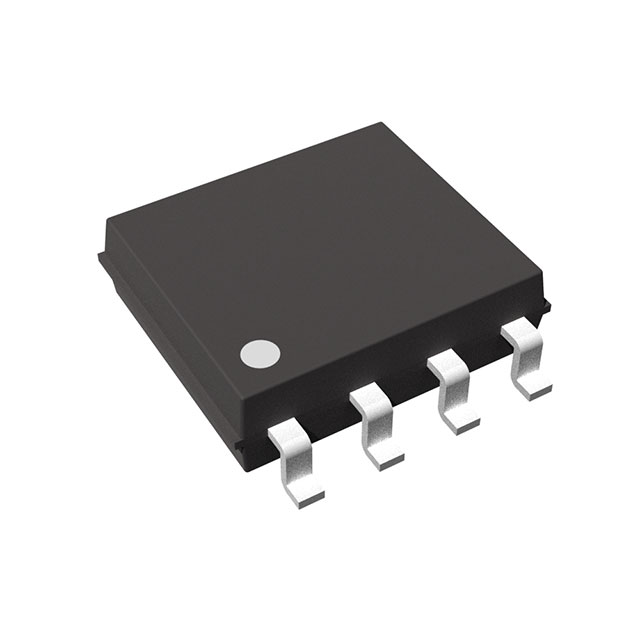

R1242S001F-E2-FE _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	R1242S001F-E2-FE
Manufacturer	RICOH/Nisshinbo Micro Devices
Other Part Numbers	R1242S001F-E2-FE-ND 2156-R1242S001F-E2-FE RICRICR1242S001F-E2-FE
Description	IC REG BUCK ADJ 3A 8HSOP
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC (0.173", 4.40mm Width) Exposed Pad
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		RICOH/Nisshinbo Micro Devices
Series		R1242S
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		8-SOIC (0.173", 4.40mm Width) Exposed Pad
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		3A
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		500kHz
Voltage - Input (Max)		30V
Topology		Buck
Supplier Device Package		8-HSOP-E
Synchronous Rectifier		Yes
Voltage - Output (Max)		15V
Voltage - Input (Min)		5V
Voltage - Output (Min/Fixed)		0.8V

RESOURCE TYPE		LINK
Datasheets		R1242S001F-E2-FE

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
