R1223N332A-TR-FE _ DC DC Switching Controllers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	R1223N332A-TR-FE
Manufacturer	RICOH/Nisshinbo Micro Devices
Other Part Numbers	R1223N332A-TR-FE-ND
Description	13.2V INPUT PWM/VFM STEP-DOWN DC
Detailed Description	Buck Regulator Positive Output Step-Down DC-DC Controller IC SOT-23-5
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers
Manufacturer		RICOH/Nisshinbo Micro Devices
Series
Packaging		Tape & Reel (TR)
Part Status		Active

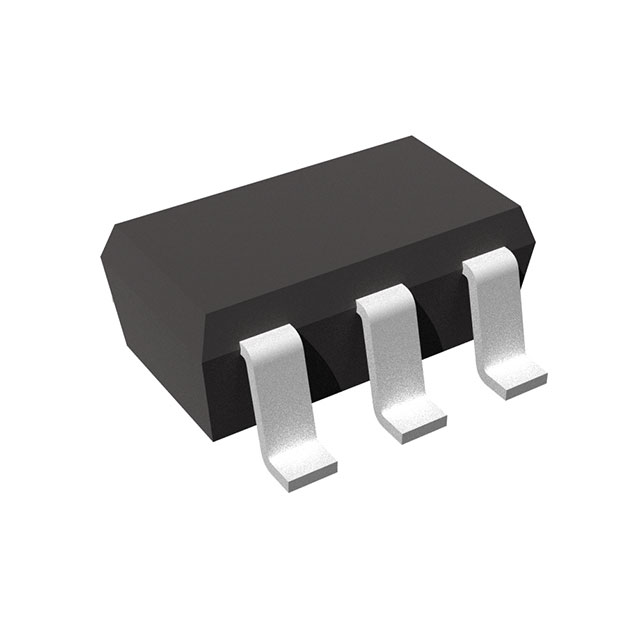

Package / Case		SC-74A, SOT-753
Output Type		PWM
Mounting Type		Surface Mount
Function		Step-Down
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive
Frequency - Switching		300kHz
Topology		Buck
Voltage - Supply (Vcc/Vdd)		2.3V ~ 13.2V
Supplier Device Package		SOT-23-5
Synchronous Rectifier		No
Control Features		Enable
Output Phases		1
Duty Cycle (Max)		100%
Clock Sync		No
Number of Outputs		1

RESOURCE TYPE		LINK
Datasheets		R1223N332A-TR-FE

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
