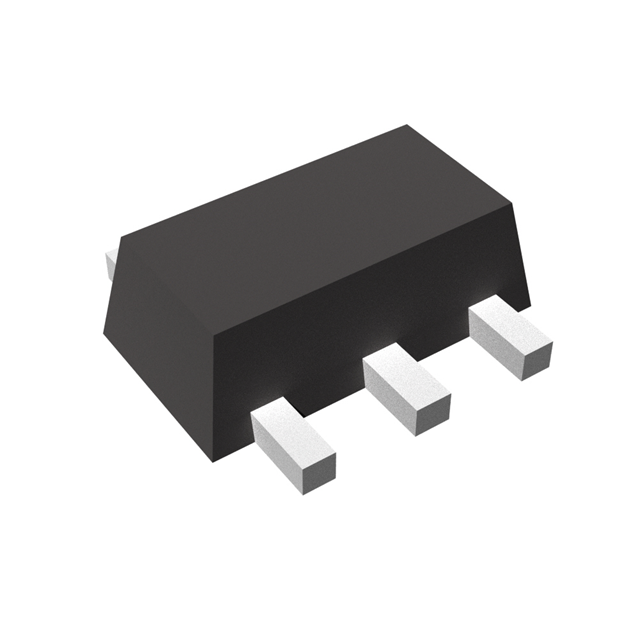

R1170H161B-T1-FE _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	R1170H161B-T1-FE
Manufacturer	RICOH/Nisshinbo Micro Devices
Other Part Numbers	R1170H161B-T1-FE-ND 2156-R1170H161B-T1-FE RICRICR1170H161B-T1-FE
Description	IC REG LINEAR 1.6V 800MA SOT89-5
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 800mA SOT-89-5
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		RICOH/Nisshinbo Micro Devices
Series		R1170x
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		SOT-89-5/6
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		800mA
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive
Current - Quiescent (Iq)		160 µA
Voltage - Input (Max)		7V
Number of Regulators		1
Supplier Device Package		SOT-89-5
Voltage - Output (Min/Fixed)		1.6V
Control Features		Enable
PSRR		50dB (1kHz)
Voltage Dropout (Max)		0.35V @ 300mA
Protection Features		Over Current, Over Temperature

RESOURCE TYPE		LINK
Datasheets		R1170H161B-T1-FE

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
