R114183000 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	R114183000
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-R114183000-ND 2201-R114183000 R114.183.000
Description	SMB F RA F CR 2/50 C100

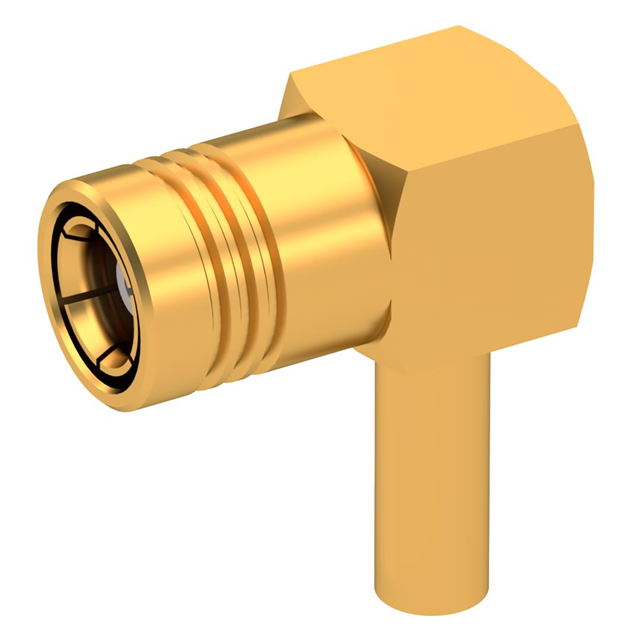

Detailed Description	SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Female Socket
Contact Termination		Crimp
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line), Right Angle
Cable Group		RG-178, 196
Operating Temperature		-65°C ~ 165°C
Fastening Type		Snap-On
Includes		2 pcs - 1 Connector, 1 End Cap
Connector Style		SMB
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		4 GHz
Number of Ports		1
Voltage Rating		250 V

RESOURCE TYPE		LINK
Datasheets		R114183000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
