QJ8008NH4TP

QJ8008NH4TP

Part Number	QJ8008NH4TP
Manufacturer	Wickmann / Littelfuse
Other Part Numbers	18-QJ8008NH4TP-ND 18-QJ8008NH4TP -1024-QJ8008NH4TP
Description	TRIAC ALTERNISTOR 800V 8A TO263
Detailed Description	TRIAC Alternistor - Snubberless 800 V 8 A Surface Mount TO-263 (D2PAK)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors TRIACs
Manufacturer		Wickmann / Littelfuse
Series		QJxx06xHx
Packaging		Tube
Part Status		Active

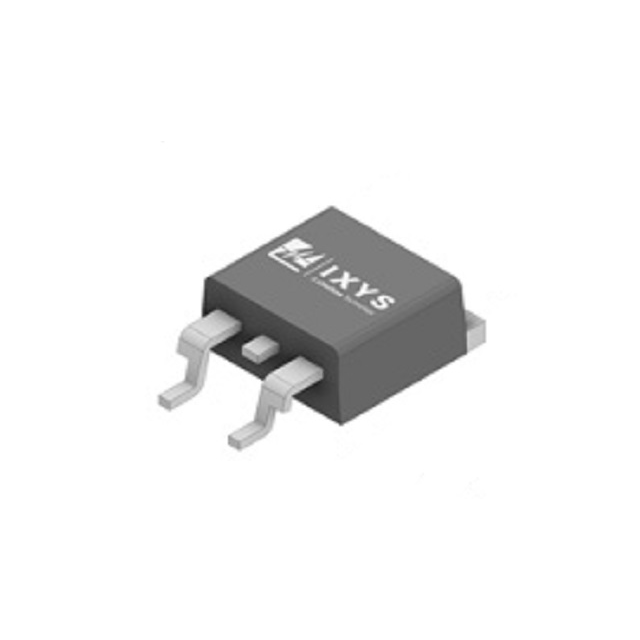

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Triac Type		Alternistor - Snubberless
Configuration		Single
Operating Temperature		-40°C ~ 150°C (TJ)
Current - Hold (Ih) (Max)		35 mA
Current - Gate Trigger (Igt) (Max)		35 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		83A, 100A
Voltage - Gate Trigger (Vgt) (Max)		1.3 V
Supplier Device Package		TO-263 (D2PAK)
Current - On State (It (RMS)) (Max)		8 A
Voltage - Off State		800 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		QJ8008NH4TP

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 996

Can ship immediately.
