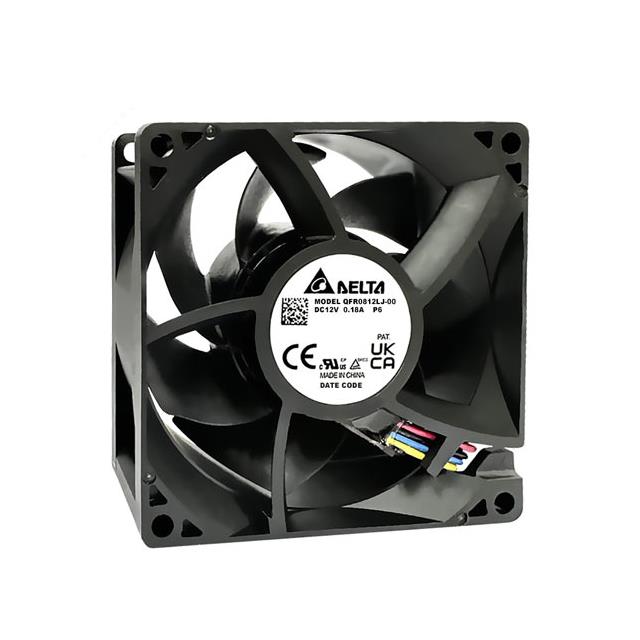

QFR0812LJ-00P6 _ DC Brushless Fans (BLDC)_Fans_Fans, Blowers, Thermal Management

Part Number	QFR0812LJ-00P6
Manufacturer	Delta Electronics / Fans
Other Part Numbers	603-QFR0812LJ-00P6-ND 603-QFR0812LJ-00P6
Description	AXIAL 80X80X38MM 12V PWM IP68
Detailed Description	Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 33.5 CFM (0.938m³/min) 4 Wire Leads
Manufacturer Standard Lead Time	32 weeks
Datasheet	Datasheet

Category		Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC)
Manufacturer		Delta Electronics / Fans
Series		QFR
Packaging		Box
Part Status		Active
Features		Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Voltage - Rated		12VDC
Size / Dimension		Square - 80mm L x 80mm H
Bearing Type		Ball
Current Rating (Amps)		0.130A
RPM		3150 RPM
Air Flow		33.5 CFM (0.938m³/min)
Width		25.40mm
Operating Temperature		14 ~ 158°F (-10 ~ 70°C)
Voltage Range		10.8 ~ 13.8VDC
Termination		4 Wire Leads
Approval Agency		CE, cURus, TUV
Ingress Protection		IP68 - Dust Tight, Waterproof
Lifetime @ Temp.		70000 Hrs @ 40°C
Fan Type		Tubeaxial
Noise		31.5dB(A)
Static Pressure		0.141 in H2O (35.1 Pa)
Material - Frame		Plastic
Material - Blade		Plastic
Power (Watts)		1.56 W

RESOURCE TYPE		LINK
Datasheets		QFR0812LJ-00P6

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8414.59.6590
Moisture Sensitivity Level (MSL)		Not Applicable
