Part Number |
PW173KB2403F01
|
---|---|
Manufacturer | SL POWER / Advanced Energy |
Other Part Numbers |
271-2589-ND
271-2589
2266-PW173KB2403F01
|

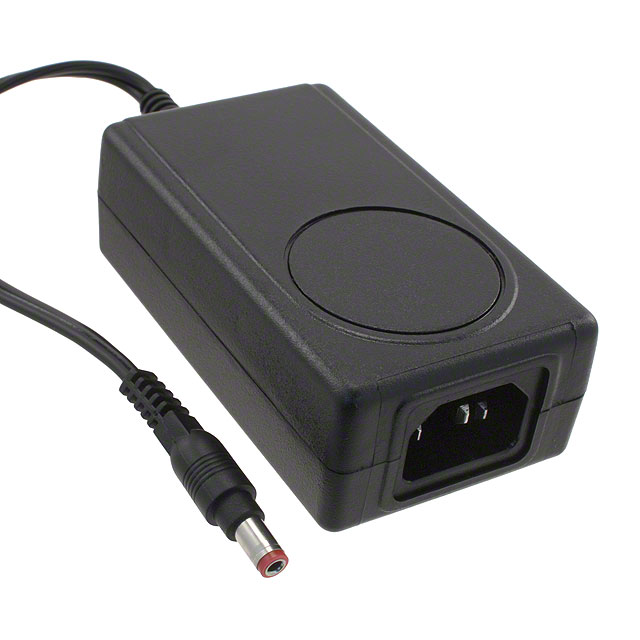

Description | AC/DC DESKTOP ADAPTER 24V 32W |
Detailed Description | 24V 32 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | SL POWER / Advanced Energy | |
Series |
PW173KB (20-32W)
|
|
Packaging |
Box
|
|
Part Status | Obsolete | |
Size / Dimension | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | |
Voltage - Output | 24V | |
Polarization | Positive Center | |
Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | |
Voltage - Input | 100 ~ 240 VAC | |
Cord Length | 70.9" (1.80m) | |
Operating Temperature | 0°C ~ 40°C | |
Applications | ITE (Commercial) | |
Input Type | Cord (Sold Separately) | |
Approval Agency | CE, cULus | |
Form | Desktop (Class I) | |
Efficiency | Level IV | |
Current - Output (Max) | 1.33A | |
Input Connector | IEC 320-C14 | |
Region Utilized | International | |
No Load Power Consumption | 500mW (Max) | |
Power (Watts) | 32 W |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Connector Options |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.40.9510 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
RoHS Status | RoHS Compliant |
