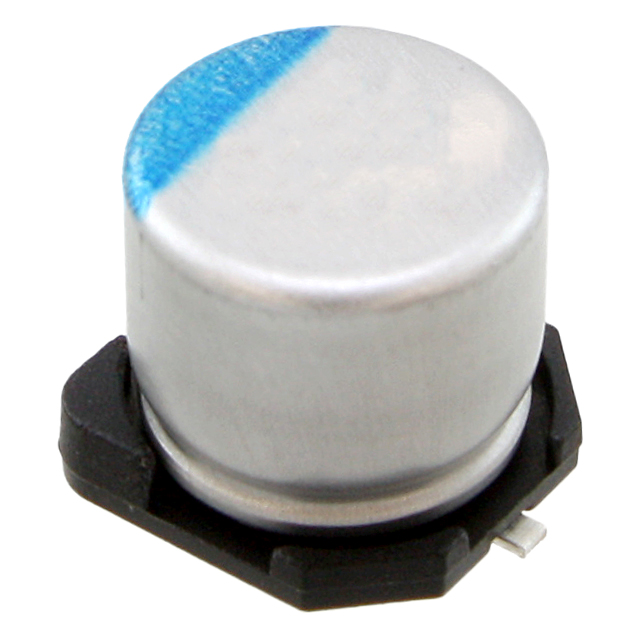

PVH-10V560MF60E-R2

PVH-10V560MF60E-R2

Part Number	PVH-10V560MF60E-R2
Manufacturer	Elna America
Other Part Numbers	604-1177-2-ND 604-1177-1-ND 604-1177-6-ND 604-1177-1 604-1177-2 PVH10V560MF60ER2 604-1177-6
Description	CAP ALUM POLY 56UF 20% 10V SMD
Detailed Description	56 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 31mOhm 2000 Hrs @ 105°C

Product Attributes

Category		Capacitors Aluminum - Polymer Capacitors
Manufacturer		Elna America
Series		PVH
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Radial, Can - SMD
Size / Dimension		0.248" Dia (6.30mm)
Mounting Type		Surface Mount
Type		Polymer
Operating Temperature		-55°C ~ 105°C
Applications		General Purpose
ESR (Equivalent Series Resistance)		31mOhm
Lifetime @ Temp.		2000 Hrs @ 105°C
Surface Mount Land Size		0.260" L x 0.260" W (6.60mm x 6.60mm)
Height - Seated (Max)		0.236" (6.00mm)
Capacitance		56 µF
Voltage - Rated		10 V
Ripple Current @ High Frequency		2.25 A @ 100 kHz

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.22.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 956

Can ship immediately.
