PV18-6LF-CY

PV18-6LF-CY

Part Number	PV18-6LF-CY
Manufacturer	Panduit Corporation
Other Part Numbers	298-15689-ND 298-15689 PV18-6LF-CY-ND 07498369460

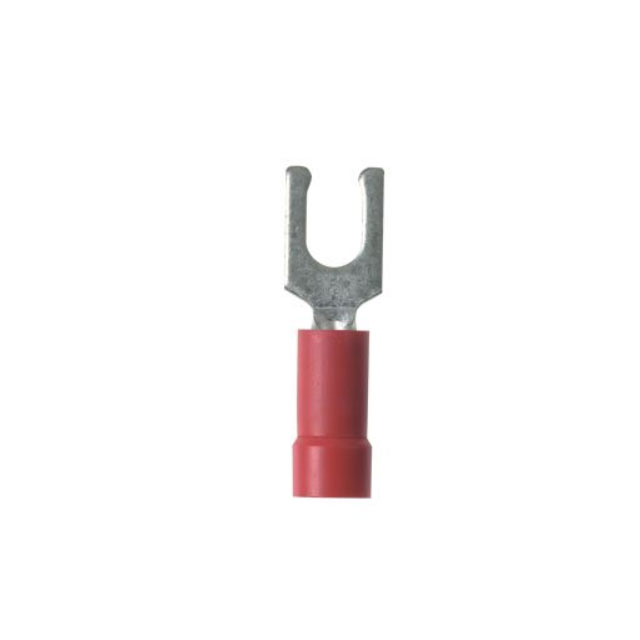

Description	CONN SPADE TERM 18-22AWG #6 RED
Detailed Description	Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG
Manufacturer Standard Lead Time	2 weeks

Product Attributes

Category		Connectors, Interconnects Terminals Spade Connectors
Manufacturer		Panduit Corporation
Series		Pan-Term®
Packaging		Bulk
Part Status		Active
Features		Brazed Seam, Serrated Termination
Contact Finish		Tin
Color		Red
Mounting Type		Free Hanging (In-Line)
Wire Gauge		18-22 AWG
Insulation		Insulated
Terminal Type		Spring, Snap
Stud/Tab Size		6 Stud
Length - Overall		0.900" (22.86mm)
Termination		Crimp
Width - Outer Edges		0.270" (6.86mm)
Contact Material		Copper

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 315
