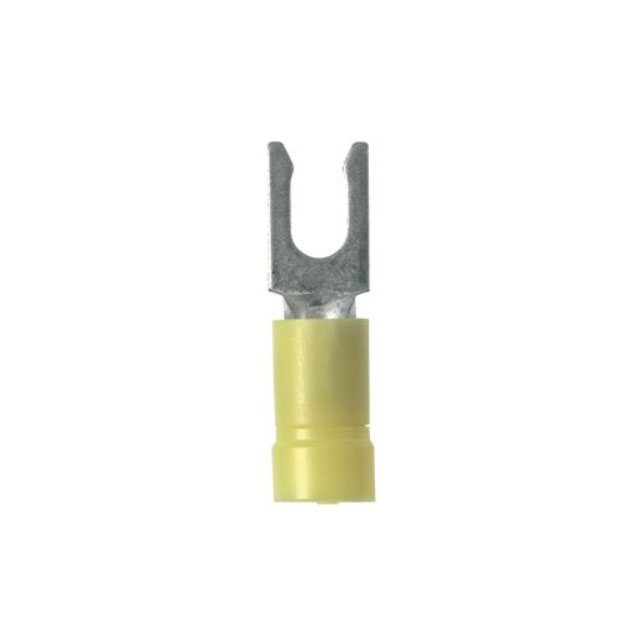

PV10-8LF-L

PV10-8LF-L

Part Number	PV10-8LF-L
Manufacturer	Panduit Corporation
Other Part Numbers	298-15623-ND 298-15623 PV10-8LF-L-ND
Description	CONN SPADE TERM 10-12AWG #8 YEL
Detailed Description	Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG
Manufacturer Standard Lead Time	2 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminals Spade Connectors
Manufacturer		Panduit Corporation
Series		Pan-Term®
Packaging		Bulk
Part Status		Active
Features		Serrated Termination
Contact Finish		Tin
Color		Yellow
Mounting Type		Free Hanging (In-Line)
Wire Gauge		10-12 AWG
Insulation		Insulated
Terminal Type		Spring, Snap
Stud/Tab Size		8 Stud
Length - Overall		1.050" (26.67mm)
Termination		Crimp
Width - Outer Edges		0.300" (7.62mm)
Contact Material		Copper

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PV10-8LF-L
Datasheets		Panduit RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 316

Can ship immediately.
