Part Number |
PTS125VJM73 LFS
|
---|---|
Manufacturer | Littelfuse / C&K |
Other Part Numbers |
CKN9101-ND
*PTS125VJM73 LFS
*Y96J132K0FP LFS
PTS125VJM73LFS
CKN9101
Y96J132K0FP LFS
|
Description | SWITCH TACTILE SPST-NO 0.05A 12V |

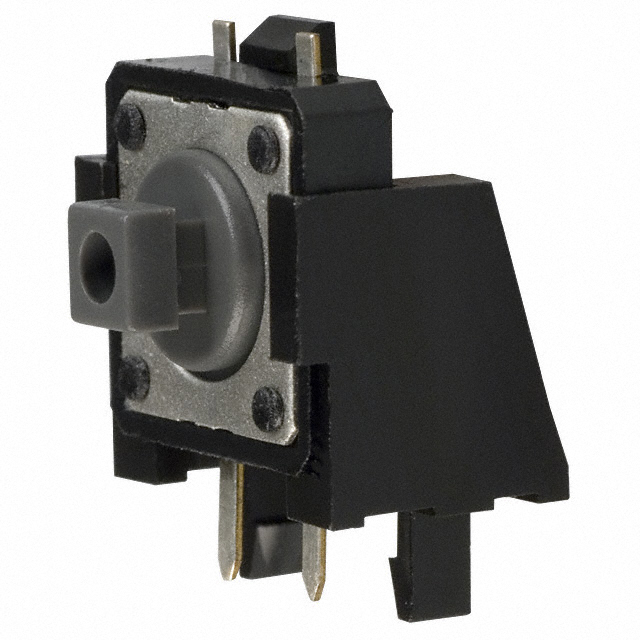

Detailed Description | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Littelfuse / C&K | |
Series |
PTS125
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Mounting Type | Through Hole, Right Angle | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Operating Temperature | -40°C ~ 60°C | |
Termination Style | PC Pin | |
Illumination | Non-Illuminated | |
Contact Rating @ Voltage | 0.05A @ 12VDC | |
Actuator Type | Plunger for Cap | |
Operating Force | 160gf | |
Outline | 12.00mm x 12.00mm | |
Actuator Orientation | Side Actuated | |
Actuator Length, Right Angle | 6.20mm |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | PTS125VJM73 LFS Footprint | |
Datasheets | PTS125VJM73 LFS |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9031 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
