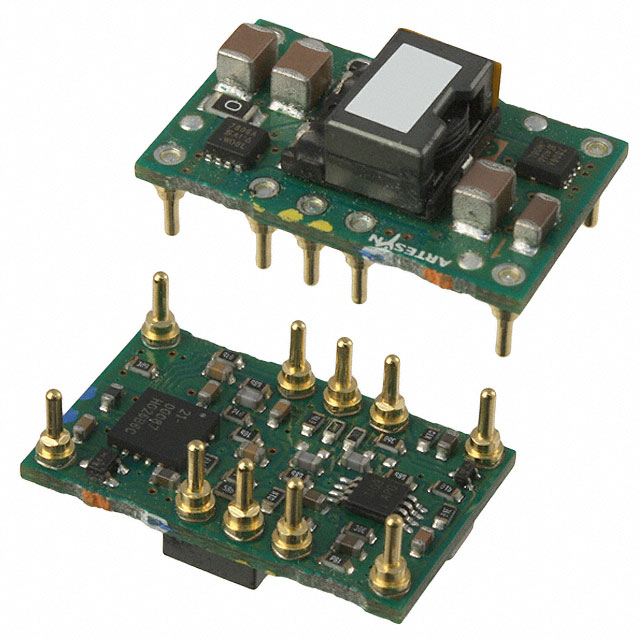

PTH12060LAD

Part Number
PTH12060LAD
Manufacturer Emerson Embedded Power (ARTESYN)
Other Part Numbers
454-1327-ND
454-1327
Description DC DC CONVERTER 0.8-1.8V 55W
Detailed Description Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 1.8V 10A 10.8V - 13.2V Input
Datasheet Datasheet

Product Attributes

Category
Manufacturer Emerson Embedded Power (ARTESYN)
Series
PTH12060 (55W)
Packaging
Tray
Part Status Obsolete
Features Remote On/Off, SCP, UVLO
Package / Case 10-DIP Module
Size / Dimension 0.10" L x 0.62" W x 0.35" H (2.5mm x 15.8mm x 9.0mm)
Mounting Type Through Hole
Type Non-Isolated PoL Module
Operating Temperature -40°C ~ 85°C
Applications ITE (Commercial)
Voltage - Input (Max) 13.2V
Efficiency 88%
Current - Output (Max) 10A
Voltage - Input (Min) 10.8V
Voltage - Output 1 0.8 ~ 1.8V
Power (Watts) 55 W
Number of Outputs 1

Documents & Media

RESOURCE TYPE LINK
Datasheets RoHS 2021 Position Statement
Datasheets CSA Marking 20/Sep/2013

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.40.9580
Moisture Sensitivity Level (MSL) 3 (168 Hours)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
